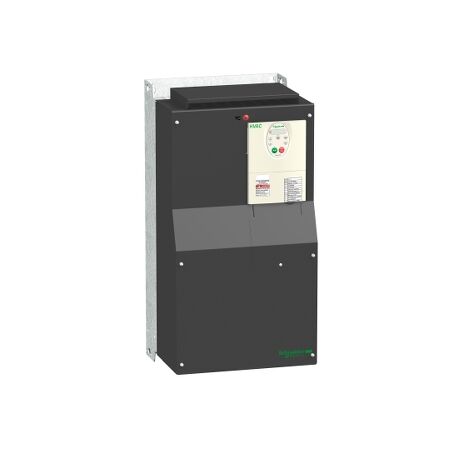

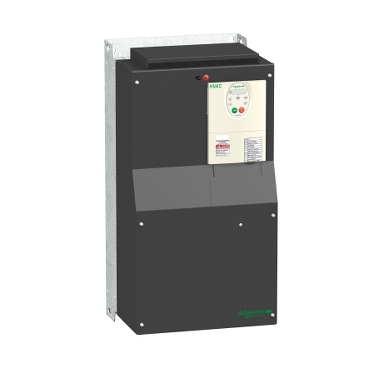

ATV212 Variable Speed Drive | 30kW Power Rating | Integrated EMC Filter | Optimized for HVAC | @Pack of 1 | by Clipsal
The ATV212 Variable Speed Drive is engineered for heavy-duty applications, featuring a robust 30kW (40HP) power rating and three-phase 480V input. Ideal for HVAC systems and industrial environments, it includes an integrated EMC filter to minimize electromagnetic interference, ensuring efficient and reliable motor control. Perfect for energy-saving solutions in commercial buildings and water treatment plants.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ATV212 Variable Speed Drive | 30kW Power Rating | Integrated EMC Filter | Optimized for HVAC | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV212WD30N4
Alternatively Known As: ATV212 Variable Speed Drive, Schneider ATV212 30KW VSD, 40HP 480V 3 Phase Drive, HVAC Inverter Drive, SCHATV212WD30N4
Technical Specifications
- Power Rating: 30kW (40HP)
- Input Voltage: 380-480V AC, 3-phase
- Output Voltage: 0-480V AC, 3-phase
- Input Frequency: 50/60Hz
- Output Frequency: 0.5-200Hz
- Integrated EMC filter (C2 category)
- Control Method: V/F, Sensorless Vector Control
- Protection: IP21 (standard), overload and short-circuit protection
- Operating Temperature: -10°C to +50°C
- Communication: Modbus, BACnet, Metasys N2, APOGEE FLN
- Dimensions (H x L x W): 500mm x 232mm x 275mm
- Weight: 28 kg
Key Features
- 30kW (40HP) power rating for heavy-duty applications
- Three-phase 480V input for industrial compatibility
- Integrated EMC filter for reduced electromagnetic interference
- Optimized for HVAC applications with energy-saving features
- User-friendly interface for easy setup and operation
- Robust design for reliable performance in demanding environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician experienced with variable speed drives and in accordance with local electrical regulations.
Applications
- HVAC systems in commercial buildings
- Pumps and fans in industrial environments
- Water treatment plants
- General motor control for energy efficiency
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Reduces energy consumption by optimizing motor speed
- Lowers greenhouse gas emissions through efficient operation
- Supports sustainable building management by enabling demand-based control
Warranty Information
Standard 18-month warranty from date of invoice or 12 months from commissioning, whichever comes first.
Available Now
The Clipsal ATV212 30KW 40HP 480V 3PH EMC Variable Speed Drive is available for immediate purchase. Ideal for HVAC, industrial, and commercial motor control applications.
