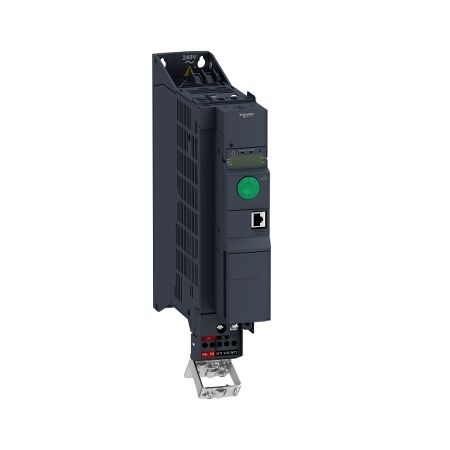

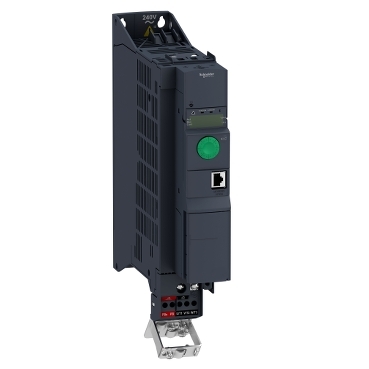

ATV320 Variable Speed Drive | 3 kW Power Rating | 3-Phase 380-500V | Compact Design | @Pack of 1 | by Clipsal
The ATV320 Variable Speed Drive is a powerful 3 kW solution designed for 3-phase 380-500V applications. Ideal for industrial automation, pumps, and HVAC systems, it features advanced motor control and an integrated EMC filter for optimal performance. With robust design and flexible connectivity options like Modbus and CANopen, this drive ensures efficient operation and reduced maintenance needs.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: ATV320 Variable Speed Drive | 3 kW Power Rating | 3-Phase 380-500V | Compact Design | @Each of 1 | by Clipsal
Brand: Clipsal
SKU: SCHATV320U30N4B
Alternatively Known As: ATV320 Variable Speed Drive, Schneider ATV320U30N4B, 3kW VSD, 3 Phase VFD, ATV320 Book Drive
Technical Specifications
- Power Rating: 3 kW (4 HP)
- Input Voltage: 3-phase, 380–500 V AC ±10%
- Output Frequency: 0.1–599 Hz
- Integrated EMC filter: Category C2
- Control Type: Sensorless vector control, V/F, Synchronous motor control
- Communication: Modbus, CANopen (integrated)
- Protection: IP20 (open style), integrated STO (Safe Torque Off)
- Operating Temperature: -10°C to +50°C (without derating)
- Overload Capacity: 150% for 60 seconds
- Dimensions (H x L x W): 143mm x 172mm x 72mm
- Weight: 2.5 kg
Key Features
- 3 kW power rating
- Supports 3-phase 380–500V input
- Compact book-style design for easy panel integration
- Integrated EMC filter
- Advanced motor control for asynchronous and synchronous motors
- Integrated safety functions (STO)
- Flexible connectivity with Modbus and CANopen
- Robust design for harsh industrial environments
Professional Installation Requirements
- Installation must be performed by a licensed electrician or qualified industrial technician, following all local electrical codes and safety standards.
Applications
- Industrial automation
- Pumps and fans
- Conveyors
- Material handling
- HVAC systems
- Machine control
Standards & Compliance
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Optimizes energy consumption by adjusting motor speed to demand
- Reduces mechanical wear and maintenance needs
- Supports efficient operation of industrial processes
Warranty Information
12 months manufacturer's warranty from date of purchase.
Available Now
The Clipsal ATV320 BOOK 3KW 3PH 380-500V Variable Speed Drive is available for immediate purchase. Ideal for industrial automation, pumps, fans, and machine control applications.
