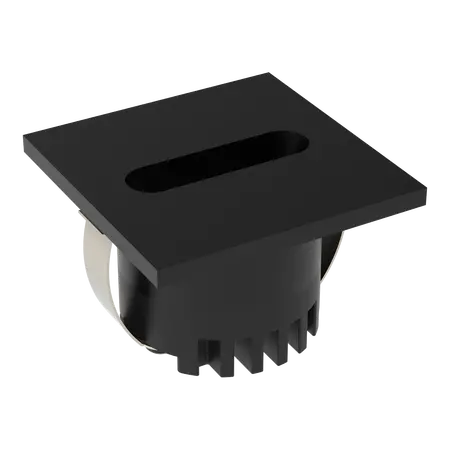

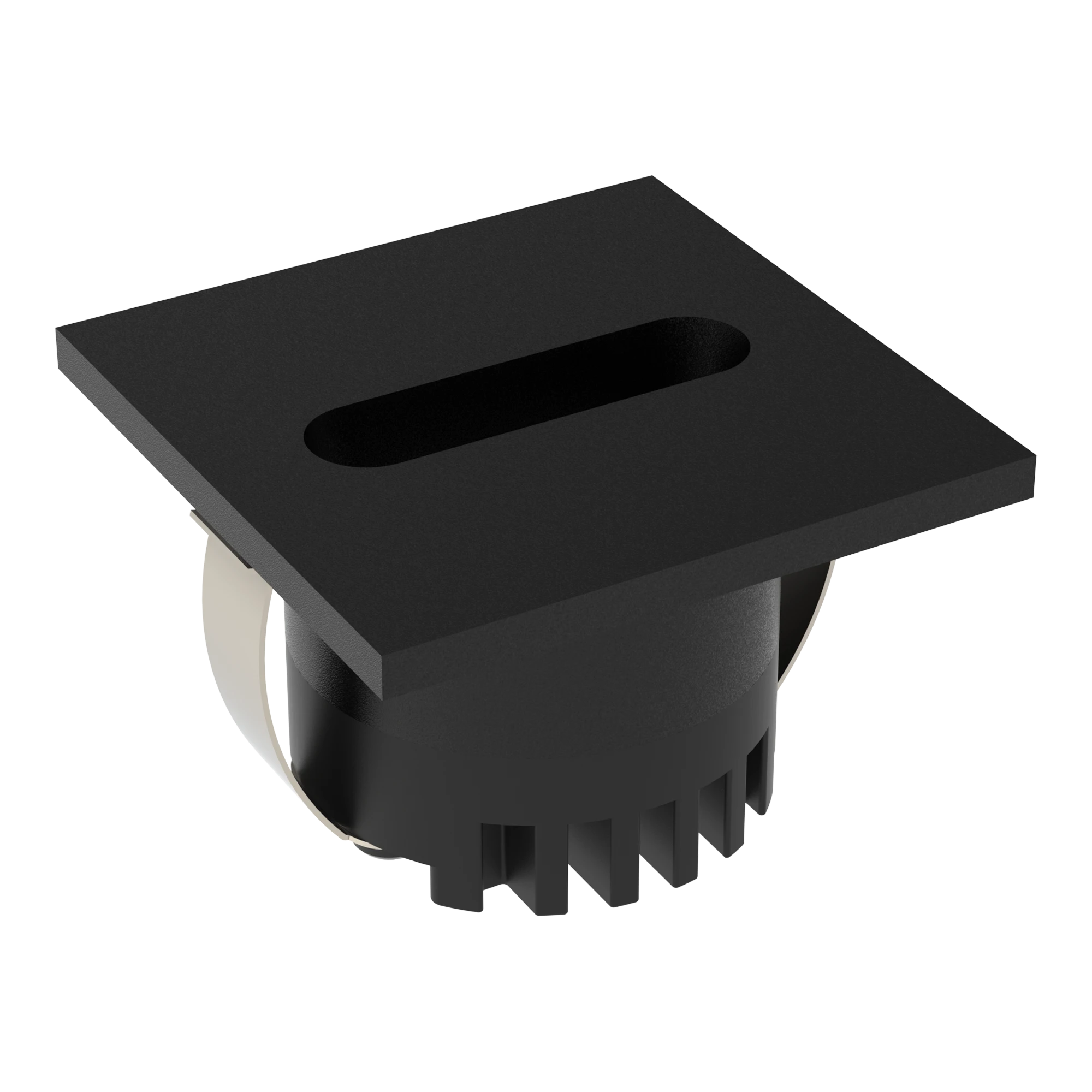

Aura Square LED Step Light Slot Fascia 3W 240V IP20 Black Domus
Domus Aura square LED step light, slot fascia, 3W, 240V, IP20, tri-colour, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aura SQR Slot LED Steplight, Recessed LED Step Light, Square Slot Fascia Step Light
Technical Specifications
- Input Voltage: 240V AC
- Power: 3W
- LED Type: SMD COB LED
- Colour Temperature: 2700K, 4000K or 6000K switchable
- Colour Rendering Index: ≥90 CRI
- Luminous Output: 26 lm at 2700K, 31 lm at 4000K, 30 lm at 6000K
- Dimming: Yes, with suitable dimmers
- IP Rating: IP20
- Cut-out: Ø35mm
- Fascia Size: 45mm x 45mm
- LED Lifespan: 50,000 hours
- Driver: Flicker-free dimmable 240V LED driver
- Construction: Die-cast aluminium with asymmetrical optic lens
- Variant: AURA-240V-SQR-BLK, item number 23751
- Dimensions (H x L x W): 45mm x 45mm x 38mm
- Weight: 0.15 kg
Key Features
- Square black slot fascia for a low-profile architectural appearance
- Tri-colour selectable output of warm white, neutral white or cool white
- Energy-efficient 3W LED suitable for low-level illumination
- Asymmetrical optic distributes light across steps, walkways and hallways
- Dimmable with compatible dimmers
- Flicker-free integrated 240V LED driver
- High colour rendering performance with CRI of at least 90
- Compact recessed design with a 35mm diameter cut-out
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable Australian electrical requirements, including AS/NZS 3000.
Applications
- Residential interior step lighting
- Hallways and walkways
- Staircases and landings
- Low-level architectural and feature lighting
- Commercial interior circulation areas
Standards & Compliance
- Applicable luminaire requirements: AS/NZS 60598.1
- Applicable recessed luminaire requirements: AS/NZS 60598.2.2
- Electrical installation should comply with AS/NZS 3000:2018
Environmental Benefits
- Low 3W power consumption supports reduced operating energy use compared with higher-wattage conventional lighting
- 50,000-hour LED lifespan can reduce replacement frequency and associated waste
- Die-cast aluminium construction is durable and recyclable at end of service life
- LED technology avoids the routine replacement of incandescent lamps
Warranty Information
Domus Aura series: 3-year replacement warranty for residential applications. Commercial applications are covered by a 12-month replacement warranty under Domus Lighting's current warranty statement. Warranty eligibility requires installation by a licensed electrician and compliance with installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
