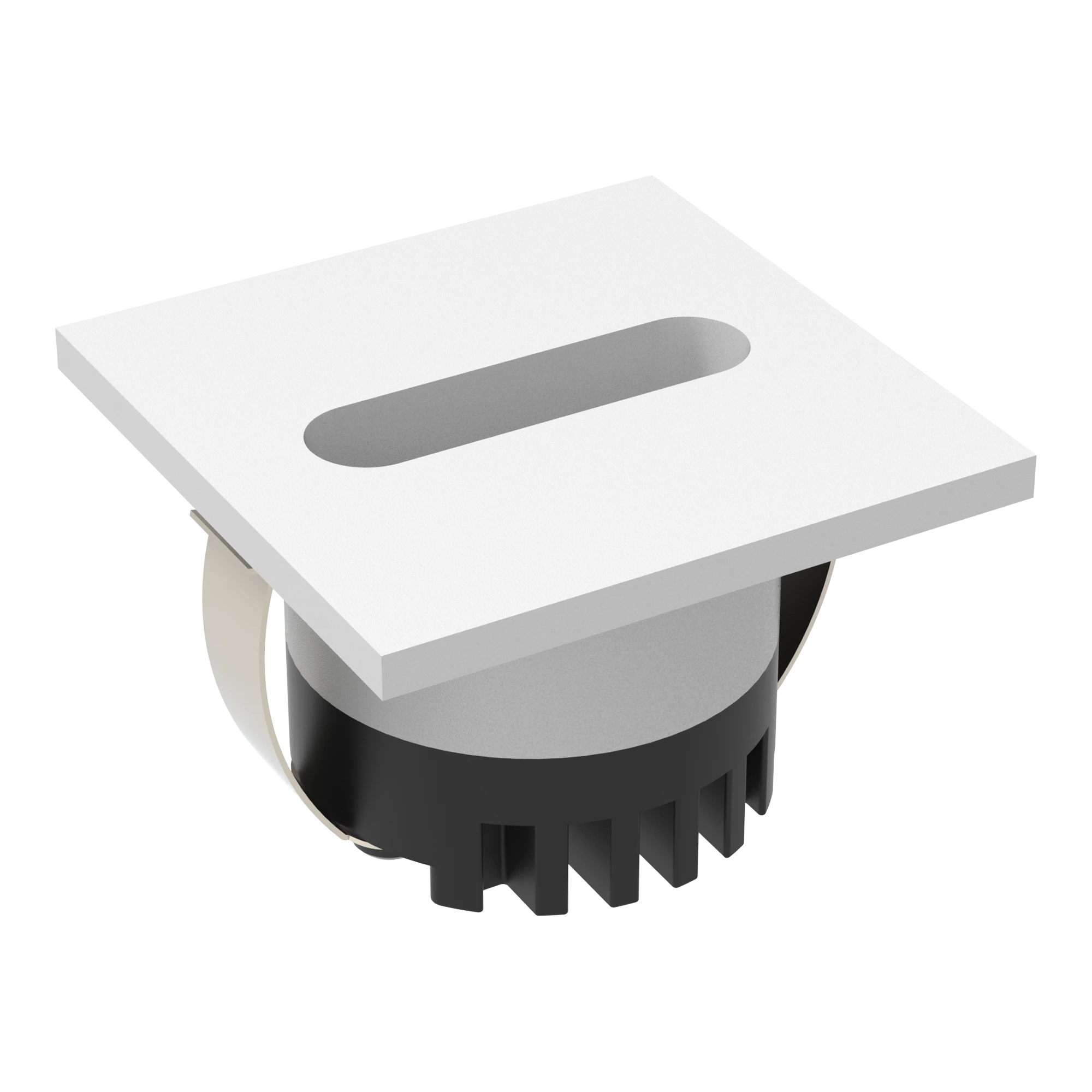

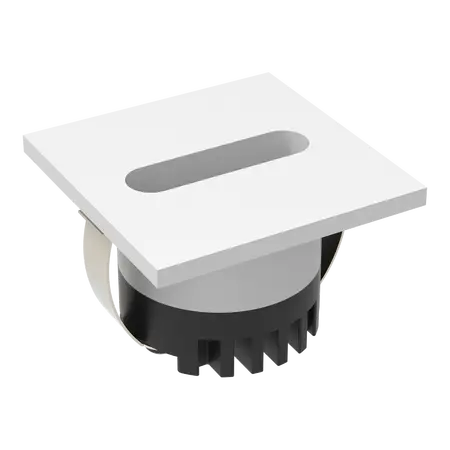

Aura Square LED Step Light Slot Fascia 3W 240V IP20 White Domus
Domus Aura square LED step light, slot fascia, 3W, 240V, IP20, tri-colour, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aura Square Recessed LED Step Light, Aura Square Slot LED Steplight, Domus AURA-240V-SQR-WHT
Technical Specifications
- Fascia Design: Square with slot opening
- Input Voltage: 240V AC
- Power Consumption: 3W
- LED Type: COB LED
- Colour Temperature: 2700K, 4000K or 6000K switchable
- Colour Rendering Index: CRI ≥90
- Dimming: Yes, with suitable dimmers
- Ingress Protection: IP20
- Construction: Die-cast aluminium
- Driver: Flicker-free dimmable LED driver included
- Cut-out Diameter: 35mm
- Lumen Output: 26lm at 2700K, 31lm at 4000K, 30lm at 6000K
- Dimensions (H x L x W): 45mm x 45mm x 38mm
- Weight: 0.15 kg
Key Features
- Square white fascia with slot light opening
- Tri-colour selectable between warm white, neutral white and cool white
- Asymmetrical optic lens for low-level illumination
- Energy-efficient 3W LED light source
- Flicker-free dimmable driver included
- Suitable for interior walkways, hallways and step lighting
- Compact recessed design
- Powder-coated white finish
Professional Installation Requirements
- Installation must be performed by a licensed electrician in accordance with AS/NZS 3000, the manufacturer's installation instructions and applicable electrical regulations. The IP20 rating is intended for dry indoor locations only.
Applications
- Indoor stair and step lighting
- Residential hallways and walkways
- Commercial interior circulation areas
- Low-level architectural lighting
- Entryways and access corridors
Standards & Compliance
- AS/NZS 60598.1: General requirements and tests for luminaires
- AS/NZS 60598.2.2: Particular requirements for recessed luminaires
- AS/NZS 3000: Electrical installations and wiring rules
Environmental Benefits
- Low 3W power consumption supports reduced operating energy use compared with higher-wattage conventional light sources
- LED technology provides a long service life, helping reduce replacement frequency and waste
- Die-cast aluminium construction is durable and the aluminium component is recyclable
- Tri-colour selection and dimming can help optimise light output and energy consumption for the application
Warranty Information
3-year replacement warranty for residential applications and 12-month replacement warranty for commercial applications, subject to Domus Lighting warranty conditions including installation by a licensed electrician.
Available Now
Available through Domus Lighting and authorised Australian electrical wholesalers and lighting retailers.
