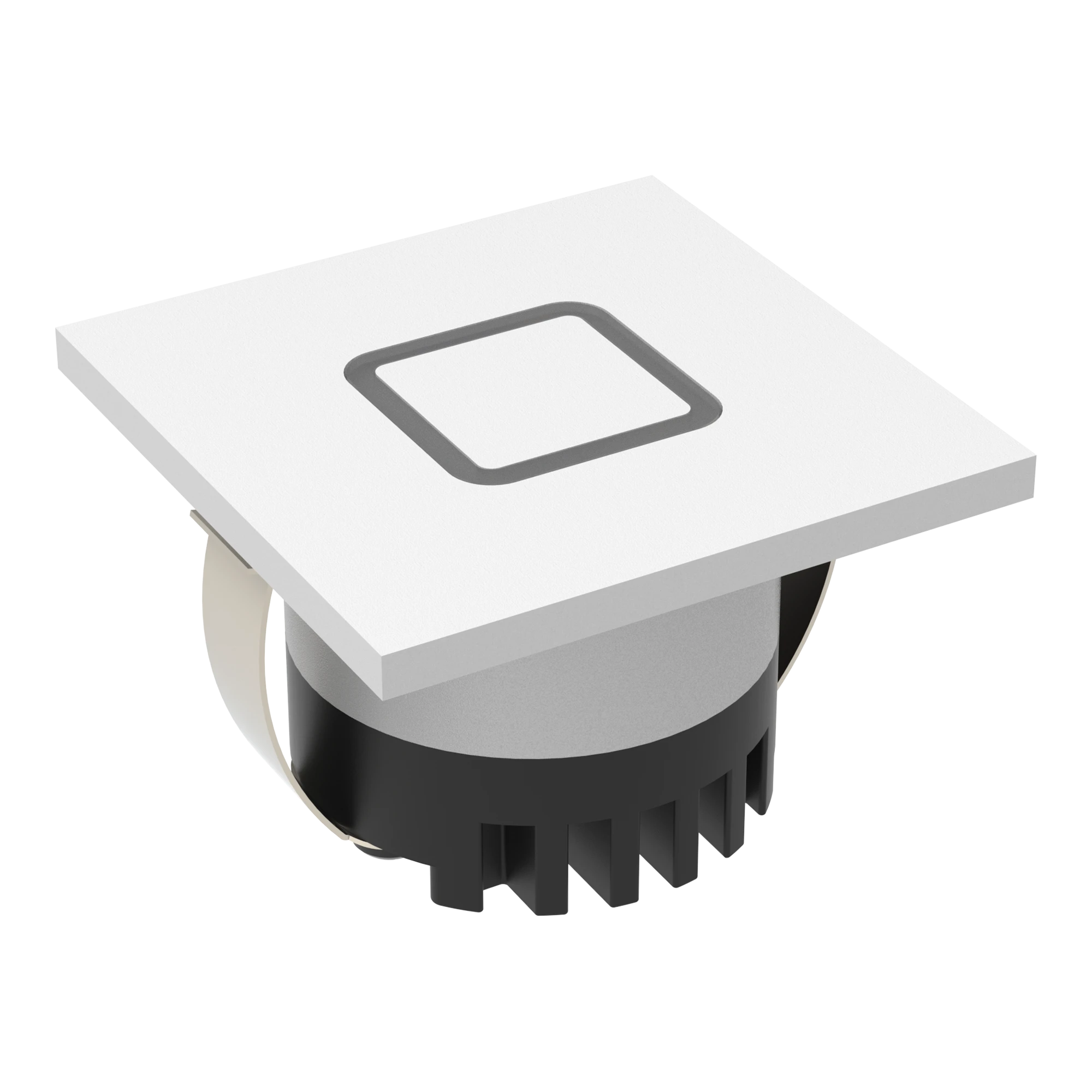

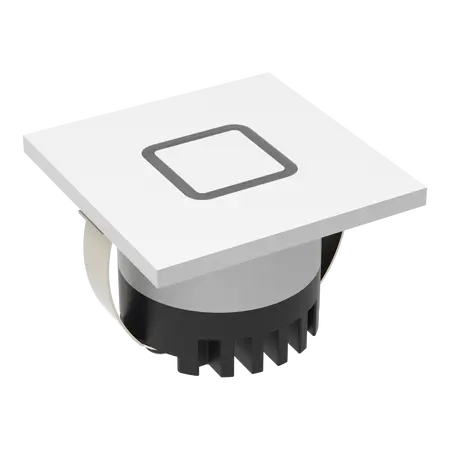

Aura Square LED Step Light Square Ring Fascia 3W 240V White Domus
Domus Aura square LED step light, square ring fascia, 3W, 240V, IP20, tri-colour, white.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Domus Aura SQR LED Steplight, Recessed LED Step Light, Square Ring Fascia Step Light, AURA-240V-SQR-WHT
Technical Specifications
- Input Voltage: 240V AC
- Power: 3W
- LED Type: SMD COB LED
- Colour Temperature: 2700K, 4000K or 6000K switchable
- Colour Rendering Index: CRI ≥90
- Luminous Output: 10–11 lm, depending on colour temperature
- Dimming: Yes, with suitable dimmers
- IP Rating: IP20
- Construction: Die-cast aluminium
- Optics: Asymmetrical optic lens
- Rated Lifespan: 50,000 hours
- Cut-out Diameter: 35mm
- Driver: Flicker-free dimmable LED driver included
- Dimensions (H x L x W): 38mm x 45mm x 45mm
- Weight: 0.2 kg
Key Features
- Square Ring fascia design
- White finish
- Tri-colour selectable light output
- Compact recessed format for step lighting and low-level illumination
- Dimmable with compatible dimmers
- Low 3W energy consumption
- Asymmetrical optics for directed pathway illumination
- Suitable for interior walkways, hallways and low-level areas
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Isolate the electrical supply before installation and install the 240V fitting in accordance with the manufacturer's instructions and AS/NZS 3000 requirements.
Applications
- Interior stairways and steps
- Residential hallways and walkways
- Commercial corridors and low-level circulation areas
- Architectural feature and accent lighting
- Low-level illumination in hotels, apartments and public buildings
Standards & Compliance
- AS/NZS 60598.1: Applicable general requirements and tests for luminaires
- AS/NZS 60598.2.2: Applicable requirements for recessed luminaires
- AS/NZS 3000: Electrical installation and wiring requirements
Environmental Benefits
- Uses only 3W for low-level illumination, helping reduce operational energy consumption
- 50,000-hour rated LED lifespan can reduce replacement frequency and product waste
- Die-cast aluminium construction is durable and recyclable
- LED technology avoids routine replacement of higher-consumption incandescent or halogen lamps
Warranty Information
3-year replacement warranty for residential applications. Domus Lighting's published warranty policy lists a 12-month replacement warranty for commercial step-light applications. Warranty eligibility requires installation by a licensed electrician and compliance with the installation instructions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors.
