Trade Discount 25%

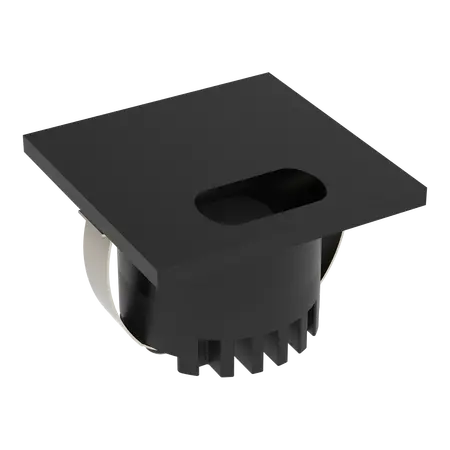

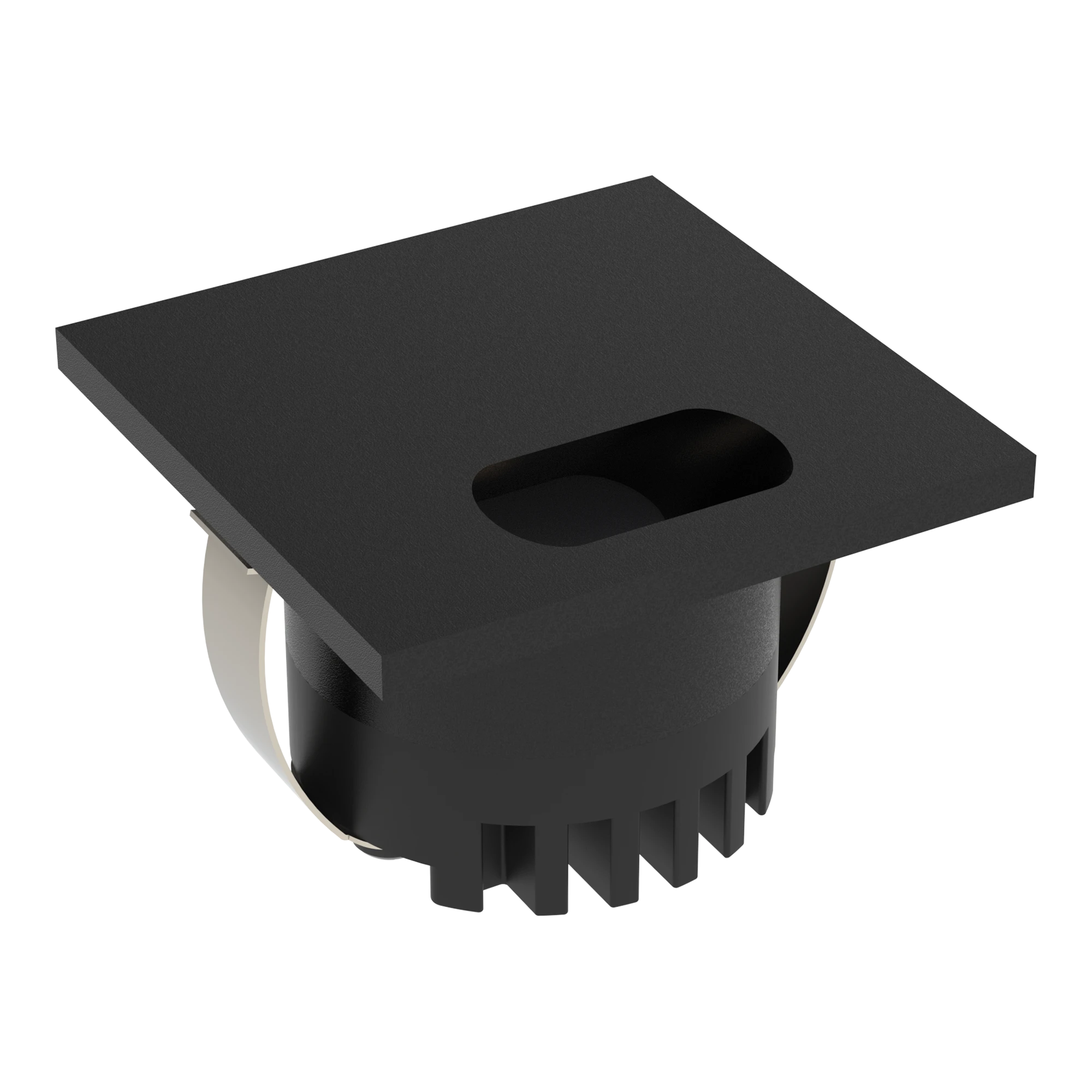

Aura Square LED Step Light Wide Fascia 3W 240V IP20 Black Domus
Domus Aura square LED step light, wide fascia, 3W, 240V, IP20, tri-colour, black.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aura SQR Wide LED Step Light, Recessed LED Step Light, Square LED Wall Light, Low-Level LED Light
Technical Specifications
- Model: AURA-240V-SQR-BLK
- Fascia Design: Square wide fascia
- Input Voltage: 240V AC
- Power: 3W
- LED Type: SMD COB LED
- Colour Temperature: 2700K, 4000K or 6000K switchable
- Luminous Output: 25 lm at 2700K; 30 lm at 4000K; 30 lm at 6000K
- Colour Rendering Index: CRI ≥90
- Dimming: Yes, with suitable dimmer
- IP Rating: IP20
- Cut-Out Diameter: 35 mm
- LED Lifespan: 50,000 hours
- Construction: Die-cast aluminium
- Driver: Flicker-free dimmable LED driver included
- Dimensions (H x L x W): 38mm x 45mm x 45mm
- Weight: 0.17 kg
Key Features
- Wide square fascia design with black finish
- Tri-colour selectable between warm white, neutral white and cool white
- Asymmetrical optic lens for low-level pathway illumination
- Compact recessed format for interior walls and step applications
- Dimmable 240V LED driver included
- Low 3W energy consumption
- Suitable for interior walkways, hallways and low-level lighting
- Three-year manufacturer warranty
Professional Installation Requirements
- Installation must be performed by a licensed electrician. Isolate the 240V supply before fitting and install in accordance with the manufacturer's instructions and AS/NZS 3000 requirements.
Applications
- Interior residential step lighting
- Hallways and passageways
- Low-level wall lighting
- Stairways and landings
- Architectural pathway illumination
- Commercial interior lighting installations
Standards & Compliance
- AS/NZS 60598.1:2025 – applicable general requirements and tests for luminaires
- AS/NZS 3000 – electrical installation and wiring requirements
Environmental Benefits
- Low 3W power consumption can reduce operating energy use compared with higher-wattage halogen step lights
- LED lifespan of up to 50,000 hours can reduce replacement frequency and associated waste
- Die-cast aluminium construction is durable and recyclable at end of service life
- Tri-colour operation allows one fitting to provide three colour-temperature options, reducing product replacement during fit-out changes
Warranty Information
Domus Lighting provides a three-year replacement warranty for interior LED step lights in residential applications and a 12-month replacement warranty for commercial applications. Warranty eligibility requires installation by a licensed electrician and compliance with the manufacturer's installation guidelines.
Available Now
Available through Domus Lighting and authorised Australian electrical and lighting distributors.
