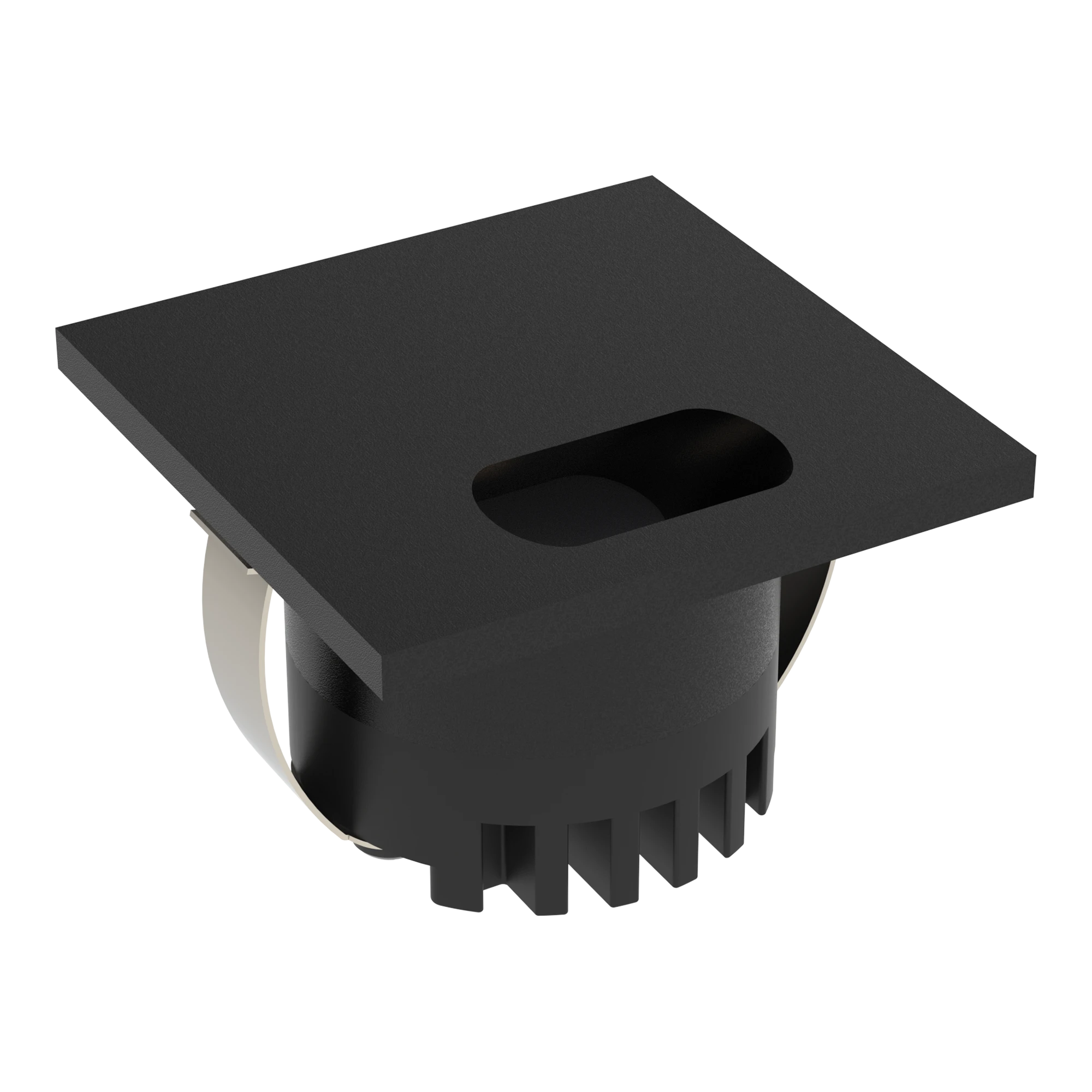

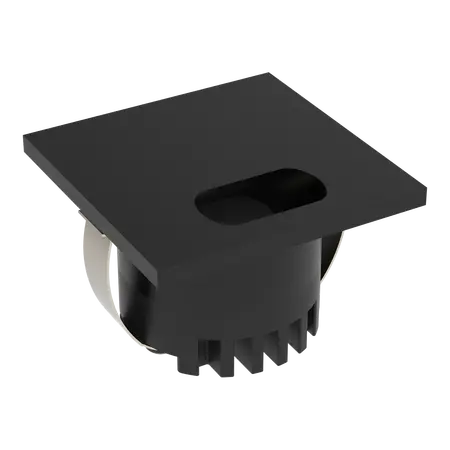

Aura Square LED Step Light Wide Fascia 3W 24V IP20 Black Domus
Domus Aura square LED step light, wide fascia, 3W, 24V, IP20, tri-colour, black. Requires 24V DC LED driver.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Aura AURA-24V-SQR-BLK Wide Square LED Steplight, Recessed LED Step Light, Low-Voltage LED Stair Light
Technical Specifications
- Input Voltage: 24V DC constant voltage
- Power: 3W
- LED Type: SMD LED
- Fascia Design: Square wide fascia
- Finish: Black
- Colour Temperature: 2700K, 4000K or 6000K switchable
- Lumen Output: 25 lm at 2700K; 30 lm at 4000K and 6000K
- Colour Rendering Index: CRI ≥90
- Dimming: Yes, with suitable dimmer
- IP Rating: IP20
- Lifespan: 50,000 hours
- Cut-out: 35 mm diameter
- Construction: Die-cast aluminium
- Driver Requirement: 24V DC constant-voltage LED driver required; not included
- Dimensions (H x L x W): 45mm x 45mm x 38mm
- Weight: 0.1 kg
Key Features
- Compact recessed LED step light for interior walkways, hallways and low-level areas
- Wide square fascia with black finish
- Tri-colour selectable between warm white, neutral white and white
- Asymmetrical optic lens for directed, even illumination
- Dimmable with suitable dimming equipment
- Low-voltage 24V DC operation
- Long 50,000-hour rated LED lifespan
Professional Installation Requirements
- Installation should be performed by a licensed electrician in accordance with the manufacturer's installation instructions and applicable electrical installation requirements. A suitable 24V DC constant-voltage LED driver is required and must be correctly selected, installed and ventilated.
Applications
- Interior stairways and steps
- Hallways and corridors
- Low-level architectural lighting
- Residential and commercial walkway lighting
- Joinery, cabinetry and feature wall illumination
Standards & Compliance
- AS/NZS 60598.1: Luminaires — general requirements and tests
- AS/NZS 60598.2.2: Particular requirements for recessed luminaires; applicable to recessed LED luminaires of this type
Environmental Benefits
- Low 3W power consumption compared with higher-wattage conventional step lighting
- 50,000-hour rated LED lifespan can reduce replacement frequency and waste
- Die-cast aluminium construction is recyclable at end of service life
- LED technology avoids mercury-containing fluorescent light sources
Warranty Information
Domus Lighting lists a 3-year warranty for the Aura series. Domus warranty terms require installation by a licensed electrician; the current warranty statement specifies 3 years replacement warranty for residential interior step lights and 12 months for commercial applications, subject to its conditions.
Available Now
Available through Domus Lighting and authorised Australian lighting distributors; availability may vary by distributor.
