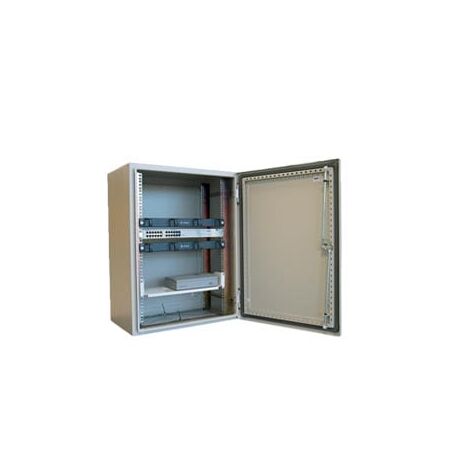

Ausrack IP Enclosure 1200x600x600mm | IP66 Protection | Zinc Coated Steel | 3-Point Locking by B&R Enclosures

SKU: ARIP24U66
$4,094.00 List price: $5,145.80
Free pick up (over 25 kg)
For delivery quote message
Ausrack IP enclosure with IP66 protection and zinc coated steel construction—ideal for mine sites and manufacturing plants. Built for harsh environments, with 3-point locking and adjustable 19″ rack rails.

Product Name/Title: Ausrack IP Encl 1200x600x600mm

Brand: B&R Enclosures

SKU: ARIP24U66

Alternatively Known As: Ausrack IP Enclosure, IP66 Rack, Zinc Coated Steel Rack

Technical Specifications
  • Protection Rating: IP66
  • Material: Zinc coated steel or 316 stainless steel
  • Rack Rails: Front and rear depth adjustable 19″
  • Locking: 3-point locking mechanism
  • Gasket: Polyurethane foamed in place
  • Dimensions (H x L x W): 1200mm x 600mm x 600mm
  • Weight: 50 kg
Key Features
  • IP66 protection rating
  • EIA-310-D standards compliant
  • Easy cabling via gland plate
  • 3-point locking for easy door opening and closing
  • Front and rear depth adjustable 19″ rack rails
  • Available in zinc coated steel or 316 stainless steel
  • Gland plate (brass available as an option)
  • Stainless steel hinges and hinge pins for easy door opening
  • Concealed removable hinging
  • Polyurethane gasket (foamed in place)
  • ASSDA approved N4 surface finish
  • Pebble grey (RAL7032) powdercoat paint finish on steel
Professional Installation Requirements
  • Professional installation is recommended for optimal performance and safety.
Applications
  • Mine sites
  • Manufacturing plants
  • Refineries
  • Campuses
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Ausrack IP – Zinc Coated Steel is available now for immediate purchase. Ideal for use in harsh environments requiring robust protection.
