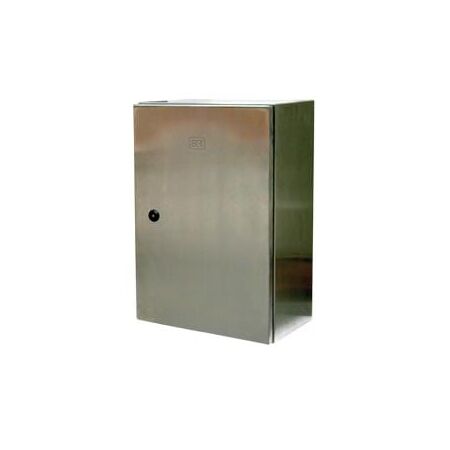

Ausrack IP66 19" Cabinet | 800x600x600mm | Stainless Steel | Lockable by B&R Enclosures

BRAND: B&R Enclosures
SKU: ARIP15U66/S
$6,725.10 List price: $8,452.80
Free pick up (over 25 kg)
For delivery quote message
30 Days Return Delivery Options
Ausrack IP66 cabinet with 800x600x600mm dimensions and stainless steel construction—ideal for data centers and telecommunications. Built for harsh environments, with lockable handles and easy cabling.

Product Name/Title: Ausrack IP S/S Encl 800x600x600mm

Brand: B&R Enclosures

SKU: ARIP15U66/S

Alternatively Known As: Ausrack 316SS Cabinet, IP66 Cabinet, 19 Inch Rack Cabinet

Technical Specifications
  • Material: 1.5mm 316 stainless steel or 1.6mm zinc coated steel.
  • IP Rating: IP66.
  • ASSDA approved N4 surface finish.
  • Height: 800mm.
  • Width: 600mm.
  • Depth: 600mm.
  • Dimensions (H x L x W): 800mm x 600mm x 600mm
  • Weight: 30 kg
Key Features
  • 19” cabinet system designed to protect sensitive equipment from harsh environments.
  • Suitable for protecting equipment from dust and water.
  • Designed to accommodate small to medium passive patching networks.
  • Easy cabling via gland plate.
  • Manufactured from 1.6mm zinc coated steel or 1.5mm 316 stainless steel.
  • ASSDA approved N4 surface finish.
  • Front and rear adjustable 19″ rack rails.
  • Gland plate (fitted internally or externally).
  • 7mm square turnbuckle lock.
  • Lockable L handles.
  • 3-point locking.
  • Removable back.
  • Door rails.
  • Earth strap kit.
Professional Installation Requirements
  • Professional installation is recommended to ensure proper setup and safety.
Applications
  • Data centers: Protecting sensitive networking equipment
  • Telecommunications: Suitable for passive patching networks
  • Industrial: Environments requiring dust and water protection
Standards & Compliance
  • Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
  • Durable materials reduce the need for frequent replacements, minimizing waste.
Warranty Information

1 year warranty against manufacturing defects.

Available Now

The Ausrack IP – 316SS Cabinet System is available now for immediate purchase. Ideal for data centers and telecommunications applications.
