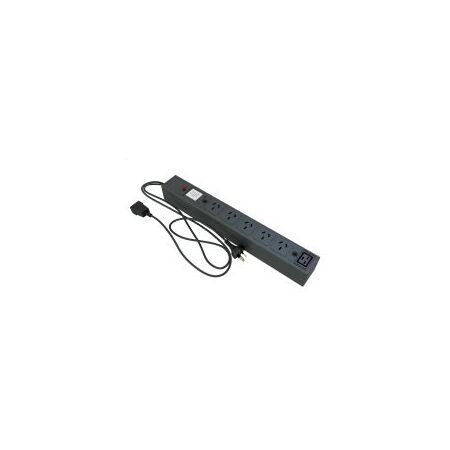

Auto Bypass Switch ATS Rack Mount 1Ph 15A with PDU PSS
PSS external bypass features manual bypass plus automatic transfer switch, 1 phase 15A in and out, integrated PDU and rack or wall mount. Ideal for 3kVA UPS.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: PSS 15A UPS Bypass PDU, External UPS Maintenance Bypass, Automatic Transfer Switch PDU
Technical Specifications
- Product Type: External manual bypass and automatic transfer switch PDU
- UPS Compatibility: 3kVA single-phase UPS systems
- Input Rating: 15A
- Output Rating: 15A
- Mounting: Rack, wall or UPS mount
- Power Switching: Automatic transfer to mains if UPS power is unavailable
- Controls: Manual push-button UPS bypass control
- Status Indication: Red LED for mains power; red and green LEDs for UPS power
- Connections: 15A Australian plug, IEC 20-16A UPS power connection and integrated PDU outlets
- Installation Arrangement: UPS input and mains GPO input should operate from the same circuit
- Manufacturer Part Number: EMBP-PDU-15A
- Dimensions (H x L x W): 47mm x 482.5mm x 62mm
- Weight: 2.3 kg
Key Features
- Combines external manual bypass and automatic transfer switch functions
- Designed for use with 3kVA UPS systems
- Provides automatic mains transfer if the UPS fails or becomes unavailable
- Integrated PDU-style load distribution outlets
- Suitable for rack, wall or UPS mounting
- Manual push-button control for UPS connection and disconnection
- Visual LED indication of mains and UPS operating modes
- 15A input and output rating
Professional Installation Requirements
- Mains-connected installation should be performed by a licensed electrician or suitably qualified electrical contractor in accordance with the manufacturer's instructions, AS/NZS 3000 and applicable state or territory electrical requirements. Confirm that the UPS and mains inputs are supplied from the same circuit and that plug types are compatible before installation.
Applications
- UPS maintenance bypass for server racks and network equipment
- 3kVA single-phase UPS installations
- Data rooms and telecommunications equipment rooms
- Small commercial and industrial critical-load applications
- Rack-mounted power distribution with manual UPS isolation
Standards & Compliance
- AS/NZS IEC 60947.6.1:2015 – applicable Australian/New Zealand standard for manual and automatic transfer switching equipment; product-specific certification was not published
- AS/NZS 3000:2018 – applicable electrical installation and wiring requirements for mains-connected installation
Environmental Benefits
- Enables UPS servicing or replacement without replacing the connected PDU and bypass assembly
- Supports longer UPS service life by providing a controlled maintenance bypass arrangement
- May reduce electronic waste by allowing the PDU and connected loads to remain in service during UPS maintenance
Warranty Information
PSS standard warranty is a 2-year return-to-base warranty from the original purchase date, subject to PSS warranty terms and correct installation and operation.
Available Now
Available through PSS Distributors and authorised Australian distributors; confirm current stock and lead time before ordering.
