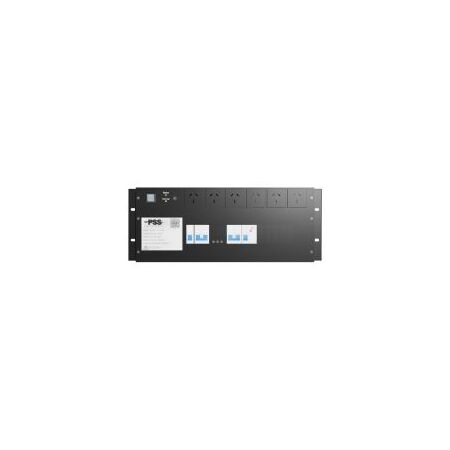

Auto Bypass Switch ATS Rack Mount 1Ph 40A with RCD and 6 GPOs PSS

BRAND: CABAC
SKU: EMBP-DIS-40A-1
$1,029.60 List price: $1,372.80
+ −
30 Days Return Electricians Unlock Trade Access
PSS external bypass features a 40A RCD with up to 5 output circuits, 6 x 10A GPOs, relay bypass with ATS and LED status. Ideal for single phase UPS systems.

Alternatively Known As: PSS External Bypass Switch, UPS Maintenance Bypass, Single-Phase UPS Bypass/ATS, Rack-Mount UPS Bypass Distribution Board

Technical Specifications
  • Model: EMBP-DIS-40A-1
  • System Type: Single-phase external manual maintenance bypass and automatic transfer switch
  • Rated Voltage: 240 V AC
  • Rated Current: 40 A
  • Rated Power: 9,600 W
  • Input Protection: 40 A RCD
  • Output Distribution: Up to 5 output circuits
  • Socket Outlets: 6 x Australian Standard 10 A GPOs
  • Transfer Method: Relay bypass with automatic transfer switch
  • Status Indication: Red and green LED indicators
  • Mounting: Rack-mount style enclosure; installation configuration to be confirmed before fitting
  • Approximate Unit Weight: 8 kg; manufacturer-published weight not located
  • Dimensions (H x L x W): 129mm x 482mm x 100mm
  • Weight: 8 kg
Key Features
  • Provides manual bypass operation to isolate the UPS for maintenance or replacement
  • Automatic transfer switch transfers the load to mains supply if the UPS is unavailable
  • Integrated 40 A RCD protection
  • Supports up to five output circuits
  • Six Australian 10 A GPOs for distributed loads
  • Relay bypass design for controlled source transfer
  • Red and green LEDs indicate bypass and normal operating status
  • Suitable for single-phase UPS and critical power distribution applications
Professional Installation Requirements
  • Hardwired 40 A electrical equipment must be installed, tested and commissioned by a licensed electrician in accordance with AS/NZS 3000 and applicable state or territory electrical regulations. The UPS manufacturer’s bypass, isolation and lockout procedures must also be followed.
Applications
  • External maintenance bypass for single-phase UPS systems
  • Data rooms and server racks
  • Telecommunications and network equipment rooms
  • Security, control and communications systems
  • Critical power distribution requiring UPS isolation without extended load interruption
Standards & Compliance
  • AS/NZS 3000:2018 Wiring Rules — applicable to electrical installation, switching, earthing, RCD protection and alternative-supply connections
  • AS/NZS 3112 — applicable to the Australian socket-outlets incorporated in the assembly; verify the supplied outlet certification before installation
Environmental Benefits
  • Allows UPS equipment to be isolated for servicing, helping extend equipment service life and reduce premature replacement waste
  • Supports continued use of repairable UPS systems rather than replacing the complete power installation
  • Integrated distribution and bypass functions can reduce the need for separate enclosures and associated installation materials
Warranty Information

PSS standard warranty is 2 years return-to-base from the original purchase date, subject to PSS warranty terms. Transportation to the PSS service base is generally excluded, and hardwired products may require approved commissioning to maintain warranty coverage.

Available Now

Available through PSS Distributors and authorised Australian distributors; contact the distributor to confirm current stock and lead time.
