Automatic Transfer Switch 1600A | 3 Pole | Advanced Logic | IP20 by NHP
Automatic transfer switch with advanced integrated logic and 1600A rating—ideal for industrial and commercial power distribution. Built for reliability, with IP20 protection and energy-efficient design.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

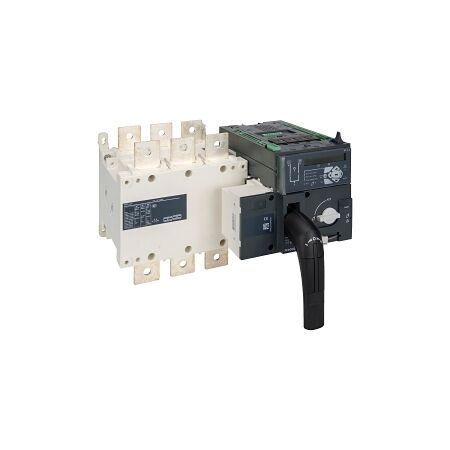

Product Name/Title: Socomec ATyS Automatic Transfer Switch - ATyS p, Advanced Integrated Logic, 3 Pole 1600A
Brand: NHP
SKU: 95733160
Alternatively Known As: Automatic Transfer Switch, ATyS Switch, Socomec Transfer Switch
Technical Specifications
- Rated Operating Voltage: 400-690 V
- Max Rated Operation Voltage: 1000 V
- Rated Permanent Current: 1600 A
- Rated Operation Power: 750 kW
- Rated Short Time Withstand Current: 50 kA
- Degree of Protection: IP20
- Motor Drive: Integrated
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 306.5mm x 391.5mm x 504mm
- Weight: 50.2 kg
Key Features
- Advanced integrated logic for automatic transfer switching.
- Rated for 1600A with 3 poles.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Data centers, critical power applications
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design enhances power reliability.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Socomec ATyS Automatic Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
