Automatic Transfer Switch 160A | 800V Max | IP20 Protection by NHP
Automatic transfer switch with integrated logic and 160A rating—ideal for industrial and commercial power management. Built for reliable power distribution, with 800V max voltage and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

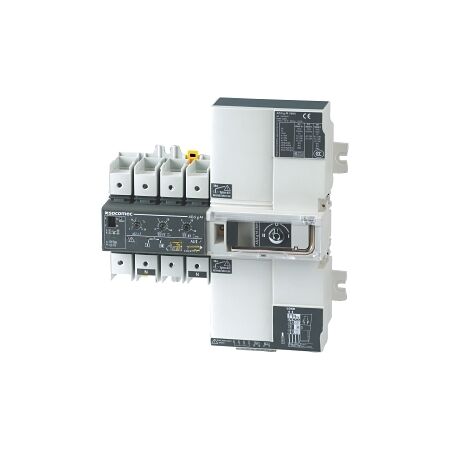

Product Name/Title: Socomec ATyS M Automatic Transfer Switch - ATyS gM, Basic Integrated Logic, 2 Pole 160A
Brand: NHP
SKU: 93532016
Alternatively Known As: Automatic Transfer Switch, ATyS M Switch, Socomec Transfer Switch
Technical Specifications
- Rated Operating Voltage: 400-690 V
- Max Rated Operation Voltage: 800 V
- Rated Permanent Current: 160 A
- Rated Operation Power: 80 kW
- Rated Short Time Withstand Current: 4 kA
- Rated Insulation Voltage: 600 V
- Degree of Protection: IP20
- Number of Poles: 2
- Motor Drive Integrated: Yes
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 245mm x 73.5mm x 222mm
- Weight: 3.63 kg
Key Features
- Integrated logic for automatic transfer switching.
- Rated for 160A with a maximum operating voltage of 800V.
- IP20 protection rating.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Backup power solutions
- General: Automatic transfer switching for critical loads
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances energy efficiency by ensuring optimal power distribution.
Warranty Information
Standard warranty terms apply.
Available Now
The Socomec ATyS M Automatic Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power management.
