Automatic Transfer Switch 2 Pole 40A | 400-690V | IP20 Rated | Integrated Logic by NHP
Automatic transfer switch with 2 poles and 40A capacity—ideal for industrial and commercial power distribution. Built for reliable power management, with integrated logic and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

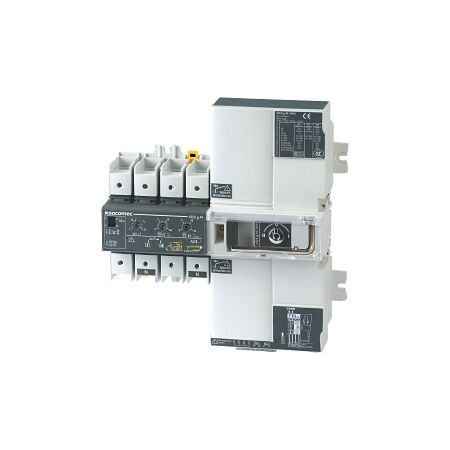

Product Name/Title: Socomec ATyS M Automatic Transfer Switch - ATyS gM, Basic Integrated Logic, 2 Pole 40A
Brand: NHP
SKU: 93532004
Alternatively Known As: Automatic Transfer Switch, ATyS M Switch, Socomec Transfer Switch
Technical Specifications
- Rated Operating Voltage: 400-690 V
- Max Rated Operation Voltage: 800 V
- Rated Permanent Current: 40 A
- Rated Operation Power: 18.5 kW
- Rated Short Time Withstand Current: 4 kA
- Rated Insulation Voltage: 600 V
- Degree of Protection: IP20
- Number of Poles: 2
- Motor Drive Integrated: Yes
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 245mm x 73.5mm x 222mm
- Weight: 3.53 kg
Key Features
- Integrated logic for automatic transfer switching.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Backup power solutions
- General: Automatic transfer switching for critical loads
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances energy efficiency by ensuring optimal power distribution.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Socomec ATyS M Automatic Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable power management.
