Automatic Transfer Switch 3 Pole 2000A | Advanced Logic | IP20 Protection by NHP

BRAND: NHP
SKU: 95733200
$36,815.00 List price: $48,885.40
Free pick up (over 25 kg)
For delivery quote message
30 Days Return Delivery Options
Automatic transfer switch with advanced integrated logic and 3 pole 2000A capacity—ideal for industrial and commercial power management. Built for seamless power distribution, with IP20 protection and energy-efficient operation.

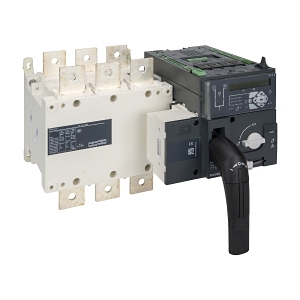

Product Name/Title: Socomec ATyS Automatic Transfer Switch - ATyS p, Advanced Integrated Logic, 3 Pole 2000A

Brand: NHP

SKU: 95733200

Alternatively Known As: Automatic Transfer Switch, ATyS Switch, Socomec Transfer Switch

Technical Specifications
  • Rated Operating Voltage: 1000 V
  • Max Rated Operation Voltage: 1000 V
  • Rated Permanent Current: 2000 A
  • Rated Control Supply Voltage: 400-690 V
  • Rated Operation Power: 900 kW
  • Rated Short Time Withstand Current: 50 kA
  • Rated Insulation Voltage: 1000 V
  • Type of Electrical Connection: Bolt connection
  • Switching Power at 400 V: 12800 kW
  • Number of Auxiliary Contacts: 3 Normally Open, 4 Change Over
  • Integrated Motor Drive: Yes
  • Interlockable: Yes
  • Padlock Locking: Yes
  • Dimensions (H x L x W): 258mm x 521mm x 596mm
  • Weight: 67.8 kg
Key Features
  • Advanced integrated logic for automatic transfer switching.
  • 3 pole design with a rated permanent current of 2000 A.
  • IP20 protection rating.
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Industrial: Power distribution systems
  • Commercial: Data centers, critical power applications
Standards & Compliance
  • Complies with relevant Australian standards for electrical safety.
Environmental Benefits
  • Energy-efficient operation reduces overall power consumption.
Warranty Information

Standard warranty applies.

Available Now

The Socomec ATyS Automatic Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial power management applications.

Non-Returnable & Non-Cancellable

95733200-AU-ATyS-Transfer-Switch-Advanced-Logic-3P-Datasheet.pdf (95733200-AU-ATyS-Transfer-Switch-Advanced-Logic-3P-Datasheet.pdf, 514 Kb) [Download]
