Automatic Transfer Switch 4 Pole 160A | Integrated Logic | IP20 Rated by NHP
Automatic transfer switch with 4 pole design and integrated logic—ideal for industrial and commercial power distribution. Built for reliable power transfer, with IP20 protection for enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

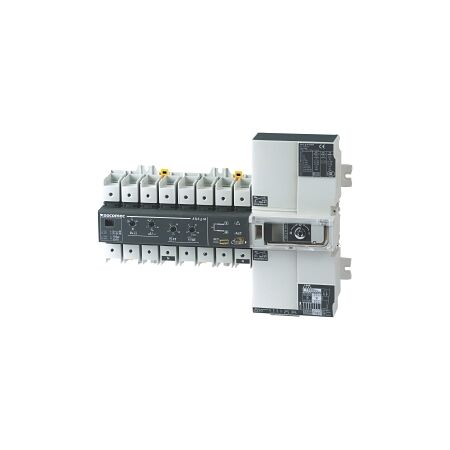

Product Name/Title: Socomec ATyS M Automatic Transfer Switch - ATyS gM, Basic Integrated Logic, 4 Pole 160A
Brand: NHP
SKU: 93544016
Alternatively Known As: Automatic Transfer Switch, ATyS M Switch, Power Transfer Switch
Technical Specifications
- Rated Operating Voltage: 800 V
- Max Rated Operation Voltage: 800 V
- Rated Permanent Current: 160 A
- Rated Control Supply Voltage: 400-690 V
- Rated Operation Power: 80 kW
- Rated Short Time Withstand Current: 4 kA
- Rated Insulation Voltage: 600 V
- Type of Electrical Connection: Screw connection
- Conditioned Rated Short Circuit Current: 40 kA
- Device Construction: Built-in device fixed built-in technique
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 245mm x 73.5mm x 324mm
- Weight: 4.39 kg
Key Features
- 4 Pole design for reliable power transfer.
- Integrated logic for automatic operation.
- IP20 rated for protection against solid objects.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Backup power solutions
- General: Automatic transfer switching for critical loads
Standards & Compliance
- Complies with relevant Australian standards for electrical safety.
Environmental Benefits
- Energy-efficient design enhances operational reliability.
Warranty Information
Standard warranty applies.
Available Now
The Socomec ATyS M Automatic Transfer Switch is available now for immediate purchase. Ideal for industrial and commercial power distribution applications.
