Automatic Transfer Switch 800A | Advanced Logic | 3 Pole | IP20 by NHP
Automatic transfer switch with advanced integrated logic and 3 pole configuration—ideal for industrial and commercial power distribution. Built for seamless power transfer, with 800A rated current and IP20 protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

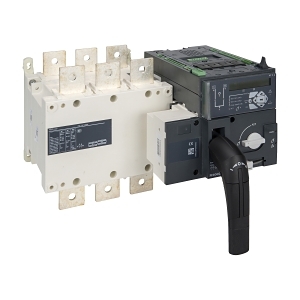

Product Name/Title: Socomec ATyS Automatic Transfer Switch - ATyS p, Advanced Integrated Logic, 3 Pole 800A
Brand: NHP
SKU: 95733080
Alternatively Known As: Automatic Transfer Switch, ATyS Switch, Power Transfer Switch
Technical Specifications
- Rated Operating Voltage: 1000 V
- Max Rated Operation Voltage: 1000 V
- Rated Permanent Current: 800 A
- Rated Control Supply Voltage: 400-690 V
- Rated Operation Power: 475 kW
- Rated Short Time Withstand Current: 35 kA
- Rated Insulation Voltage: 1000 V
- Switching Power at 400 V: 6400 kW
- Conditioned Rated Short Circuit Current: 50 kA
- Number of Poles: 3
- Motor Drive Integrated: Yes
- Interlockable: Yes
- Padlock Locking: Yes
- Dimensions (H x L x W): 306.5mm x 391.5mm x 504mm
- Weight: 45 kg
Key Features
- Advanced integrated logic for seamless power transfer.
- 3 pole configuration with a rated current of 800A.
- IP20 protection rating for safe operation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Power distribution systems
- Commercial: Backup power solutions
- General: Automatic transfer switching for critical loads
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installations.
Environmental Benefits
- Enhances energy efficiency by ensuring optimal power distribution.
Warranty Information
2 years warranty against manufacturing defects.
Available Now
The Socomec ATyS Automatic Transfer Switch is available now for immediate purchase, ideal for industrial and commercial power distribution applications.
