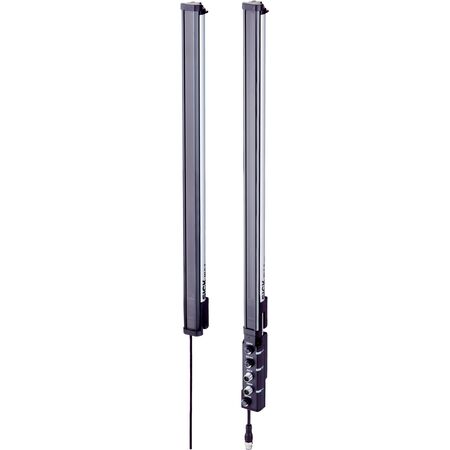

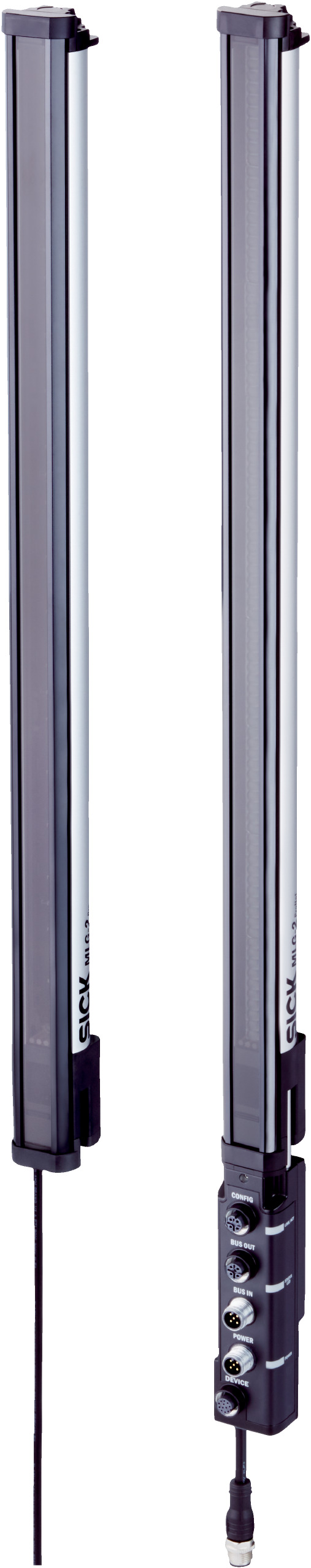

Automation Light Grid MLG10N-1640C10501 | 165 Beams | IP65 & IP67 Rated | by SICK
The Automation Light Grid MLG10N-1640C10501 features 165 beams with a 10 mm beam separation, making it ideal for precise object detection and recognition in industrial automation. With a detection height of 1,640 mm and an LED infrared light source, this grid ensures high measurement accuracy and reliability. Built for demanding environments, it boasts an IP65 and IP67 enclosure rating, making it suitable for various applications, including height classification and zone definition.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid MLG10N-1640C10501 | 165 Beams | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1128001
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Infrared Light Grid Sensor, Object Detection Light Grid
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 10 mm
- Beam separation: 10 mm
- Number of beams: 165
- Detection height: 1,640 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 63.25 mA
- Power consumption receiver: 153 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: under 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 7 m
- Operating range: 5 m
- Response time: 14 ms
- Interfaces: CANopen with data transmission rate 10 kbit/s to 1 Mbit/s
- Shock resistance: Continuous shocks 10 g, single shocks 15 g
- Vibration resistance: Sinusoidal oscillation 10-150 Hz 5 g
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 1640mm x 50mm x 50mm
- Weight: 3.5 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle
- 165 beams with 10 mm beam separation
- Detection height of 1,640 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67
- Aluminum housing with PMMA front screen
- Short initialization time under 1 second
- CANopen interface with data transmission rate 10 kbit/s to 1 Mbit/s
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Switching output
- Object detection/object width
- Object recognition
- Height classification
- Hole detection/hole size
- Outside/inside dimension
- Object position
- Hole position
- Zone definition
- Object height measurement
- Measurement of the outside dimension
- Measurement of the inside dimension
- Measurement of the object position
- Measurement of the hole position
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High measurement accuracy minimizes errors and material waste in automation processes
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for specific warranty terms.
Available Now
The SICK MLG10N-1640C10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
