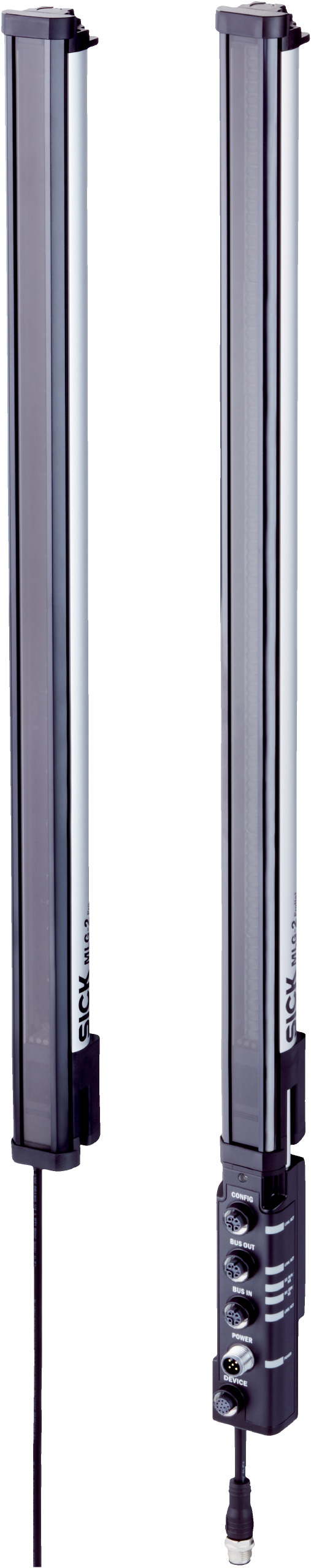

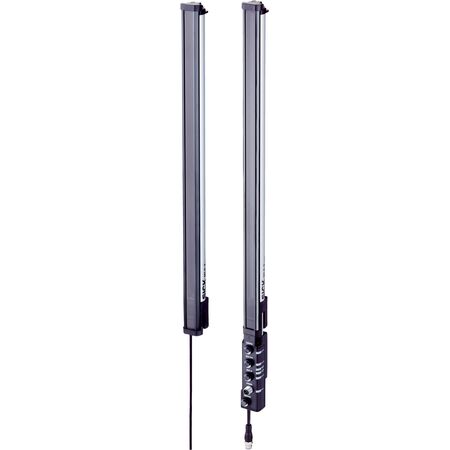

Automation Light Grid MLG10N-1640H10501 | 165 Beams | IP65 & IP67 Rated | by SICK
The Automation Light Grid MLG10N-1640H10501 features a ProNet device version with 165 beams and a minimum detectable object size of 10 mm, making it ideal for precise object detection and measurement in industrial automation. With robust IP65 and IP67 ratings, this light grid ensures reliable performance in challenging environments, providing quick initialization and high measurement accuracy for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid MLG10N-1640H10501 | 165 Beams | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1221615
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light grid sensor, Object detection light grid
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 10 mm
- Beam separation: 10 mm
- Number of beams: 165
- Detection height: 1,640 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 63.25 mA
- Power consumption receiver: 153 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 7 m
- Operating range: 5 m
- Response time: 14 ms
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 1640mm x 50mm x 50mm
- Weight: 3.5 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle with 165 beams
- Minimum detectable object size of 10 mm
- Detection height of 1,640 mm
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Enclosure rating IP65 and IP67 for robust protection
- Push-pull PNP/NPN switching output
- Cable synchronization type
- Quick initialization time of less than 1 second
Professional Installation Requirements
- Installation by qualified professionals is recommended to ensure proper setup, safety, and compliance with industrial standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for automation processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High measurement accuracy minimizes errors and material waste in automation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK MLG10N-1640H10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
