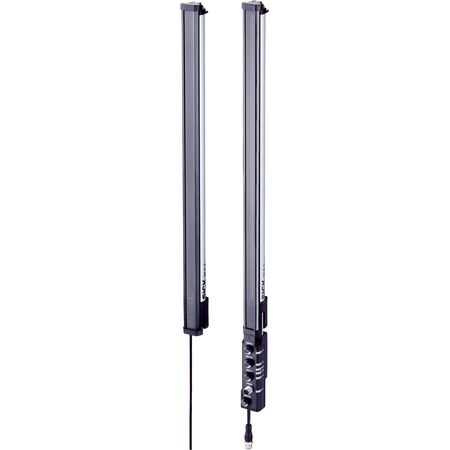

Automation Light Grid MLG25N-1925H10501 | ProNet Device | 78 Beams | IP65/IP67 Rated | by SICK
The Automation Light Grid MLG25N-1925H10501 is designed for precise object detection and measurement in industrial settings. Featuring a ProNet device version with 78 beams and a minimum detectable object size of 25 mm, it ensures high measurement accuracy and reliability. With an IP65/IP67 enclosure rating, this light grid is built to withstand harsh environments, making it ideal for automation and safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid MLG25N-1925H10501 | ProNet Device | 78 Beams | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1118860
Alternatively Known As: Automation light grid, Safety light curtain, Object detection light grid, Industrial light grid sensor
Technical Specifications
- Device version: ProNet with extended fieldbus functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 25 mm
- Number of beams: 78
- Beam separation: 25 mm
- Type of synchronization: Cable
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 58.9 mA
- Power consumption receiver: 135.6 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors
- Housing material: Aluminum
- Display: LED
- Enclosure rating: IP65, IP67
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Front screen material: PMMA
- Maximum range: 7 m
- Operating range: 5 m
- Response time: 7.3 ms
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- EMC compliance: EN 60947-5-2
- Ambient operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 200mm x 100mm x 2000mm
- Weight: 4.1 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size of 25 mm
- 78 beams with 25 mm beam separation
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Enclosure rating IP65 and IP67
- Push-pull PNP/NPN switching output
- Plug connection type M12 with 5-pin and 12-pin connectors
- Aluminum housing with PMMA front screen
- Response time of 7.3 ms
- Operating range of 5 m with maximum range of 7 m
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Complies with EMC standard EN 60947-5-2
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan reducing waste
- High measurement accuracy minimizes errors and material waste in industrial processes
Warranty Information
Warranty details available upon request from SICK, typically including manufacturer defects coverage.
Available Now
The SICK MLG25N-1925H10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
