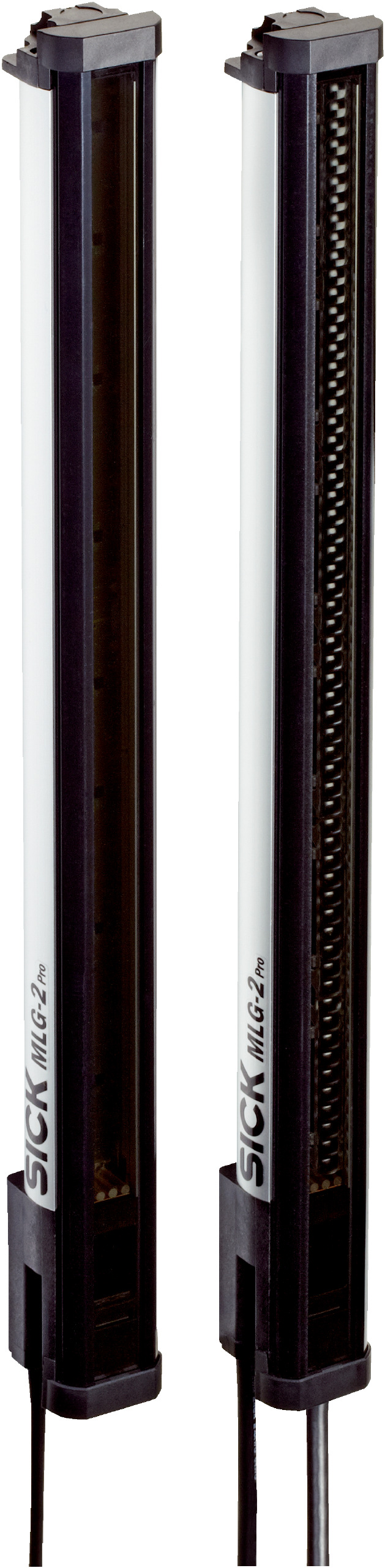

Automation Light Grid MLG30A-3120I10801 | Pro Device with 105 Beams | IP65 & IP67 Rated | by SICK
The Automation Light Grid MLG30A-3120I10801 is designed for precise object detection and measurement in industrial settings. With a detection height of 3,120 mm and a minimum detectable object size of 30 mm, this pro device features 105 beams for enhanced accuracy. Built with an aluminum housing and IP65/IP67 ratings, it ensures durability and reliability in challenging environments, making it ideal for automation safety applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid MLG30A-3120I10801 | Pro Device with 105 Beams | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1219483
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Industrial Light Grid Sensor
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 30 mm
- Beam separation: 30 mm
- Number of beams: 105
- Detection height: 3,120 mm
- Synchronization: Cable
- Light source: LED, Infrared light (850 nm)
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 60.25 mA
- Power consumption receiver: 141 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: M12 connectors (5-pin, 8-pin, 4-pin D-coded)
- Housing material: Aluminum
- Enclosure rating: IP65, IP67
- Response time: 9.4 ms
- Maximum range: 12 m
- Operating range: 8.5 m
- Interfaces: IO-Link V1.1, RS-485
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Dimensions (H x L x W): 3120mm x 100mm x 1000mm
- Weight: 6.5 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 105 beams
- Minimum detectable object size of 30 mm
- Detection height of 3,120 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67
- LED display and aluminum housing
- Short initialization time under 1 second
- RS-485 and IO-Link V1.1 interfaces with data transmission rates up to 921.6 kbit/s
- Robust against shocks and vibrations with high ambient light immunity
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial automation safety standards and electrical connections.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition and switching output applications
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- High ambient light immunity minimizes false detections, improving operational efficiency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK MLG30A-3120I10801 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
