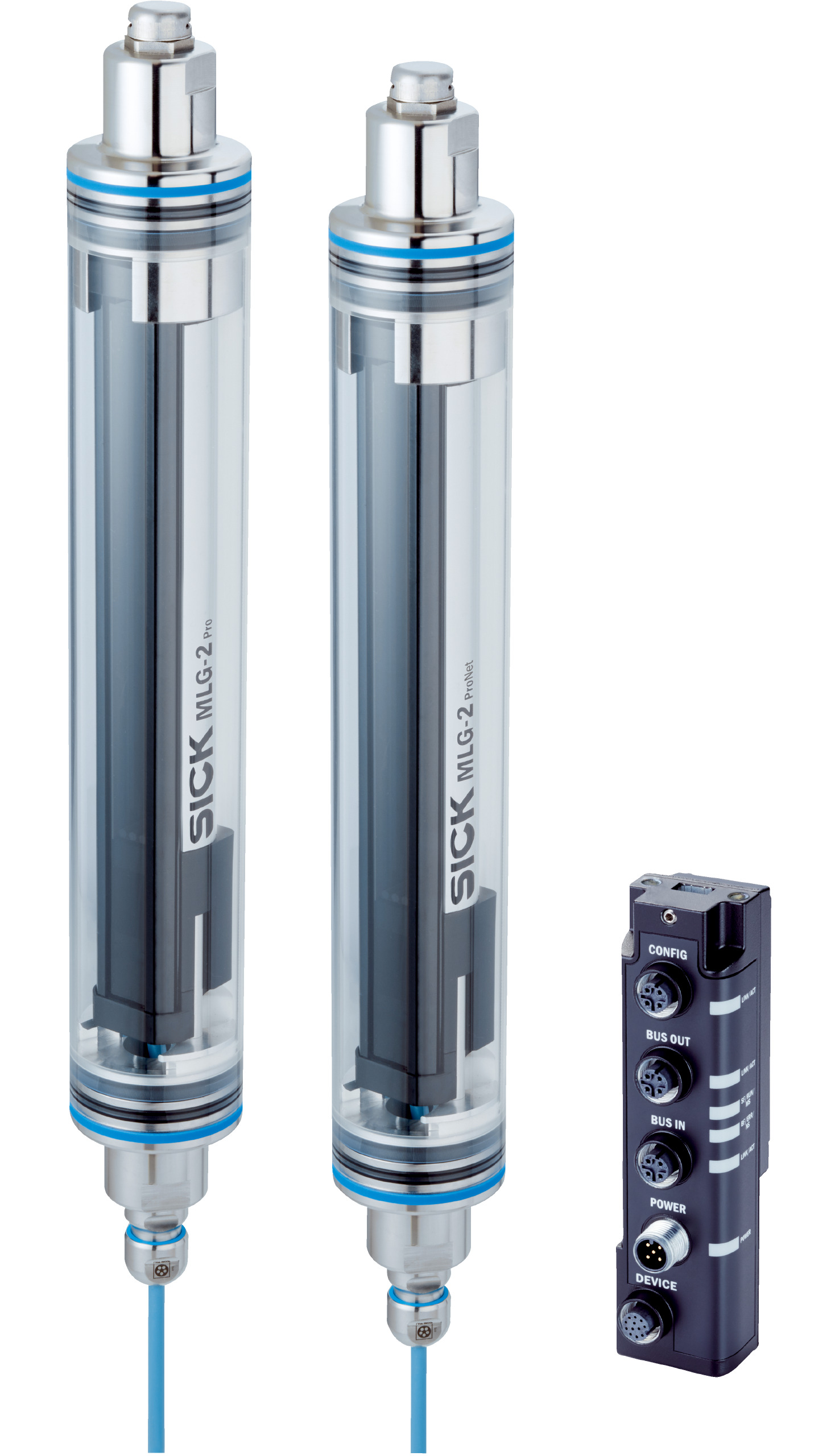

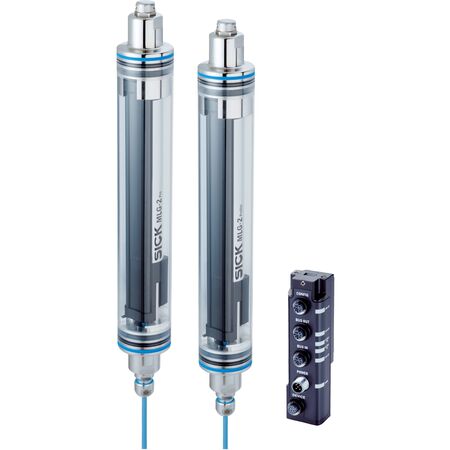

Automation Light Grid MLG30N-1020H50501 | IP69K Rated | 35 Beams | LED Infrared | by SICK
The Automation Light Grid MLG30N-1020H50501 is designed for precise object detection and measurement in industrial automation. Featuring a robust IP69K rated enclosure, 35 beams with 30 mm separation, and a fast initialization time of under 1 second, this light grid is perfect for applications like object recognition and height classification. Built for reliability, it supports EtherNet/IP™ and is ideal for harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid MLG30N-1020H50501 | IP69K Rated | 35 Beams | LED Infrared | by SICK
Brand: SICK
SKU: 1124192
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light grid sensor, Object detection light grid
Technical Specifications
- Device version: ProNet with extended fieldbus functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 30 mm
- Number of beams: 35
- Beam separation: 30 mm
- Detection height: 1020 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 56.75 mA
- Power consumption receiver: 127 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12 5-pin and 12-pin connectors, 1.4 m cable
- Housing material: Aluminum, PMMA Plexiglas XT, polypropylene, stainless steel
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Operating range: 3.75 m
- Maximum range: 5.25 m
- Response time: 4 ms
- Ambient operating temperature: -20°C to +55°C
- Storage temperature: -40°C to +70°C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Interface: EtherNet/IP™
- Dimensions (H x L x W): 110mm x 150mm x 1000mm
- Weight: 2.66 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle
- Minimum detectable object size of 30 mm
- 35 beams with 30 mm beam separation
- Cable synchronization type
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- IP69K rated enclosure for harsh environments
- Push-pull PNP/NPN switching output
- Aluminum light grid housing with stainless steel and polypropylene protective components
- Fast initialization time under 1 second
- Supports EtherNet/IP™ interface
Professional Installation Requirements
- Installation by qualified automation or electrical professionals is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition
- Height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object position and hole position measurement
- Zone definition
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K rated housing extends product lifespan reducing waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK MLG30N-1020H50501 Automation Light Grid is available for immediate purchase, ideal for industrial automation applications requiring precise object detection and measurement.
