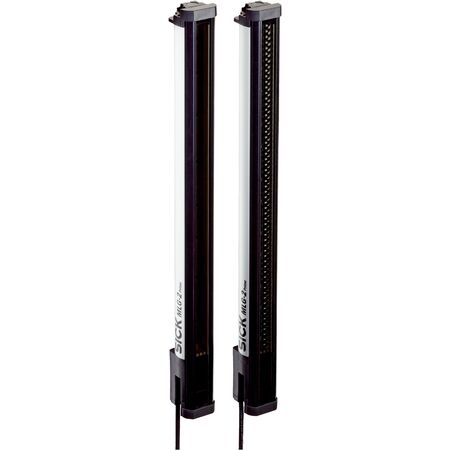

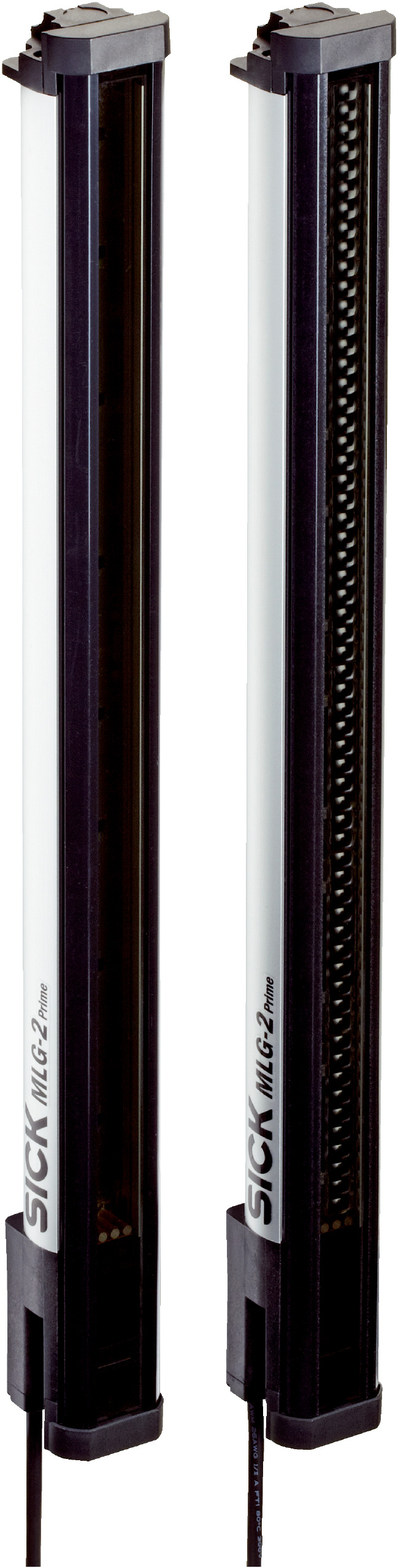

Automation Light Grid MLG30S-1620D10803 | 55 Beams | IP65 & IP67 Rated | by SICK
The Automation Light Grid MLG30S-1620D10803 features 55 beams with a 30 mm separation, making it ideal for precise object detection and height classification in industrial settings. With a robust IP65 and IP67 rated enclosure, this device ensures reliable performance in challenging environments. Designed for professional installation, it offers a wide operating temperature range from -30°C to +55°C, making it perfect for various applications in automation and safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid MLG30S-1620D10803 | 55 Beams | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1142690
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Height Classification Sensor
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 34 mm
- Number of beams: 55
- Beam separation: 30 mm
- Detection height: 1620 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 57.75 mA
- Power consumption receiver: 131 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Enclosure rating: IP65, IP67
- Protection class: III
- Maximum range: 12 m
- Minimum range: ≥ 0.5 m
- Operating range: 8.5 m
- Response time: 7.7 ms
- IO-Link V1.1 interface with 38.4 kbit/s data rate
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -30°C to +55°C
- Dimensions (H x L x W): 1620mm x 50mm x 50mm
- Weight: 3.5 kg
Key Features
- Prime - Standard functionality device version
- Sender/receiver sensor principle
- Minimum detectable object size of 34 mm
- 55 beams with 30 mm beam separation
- Optical synchronization
- Operating range of 8.5 m with maximum range of 12 m
- Response time of 7.7 ms
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- Aluminum housing with PMMA front screen
- Software features include presence detection, contamination warning, auto-define height classification
- Cross beam and beam blanking functions
- IO-Link V1.1 interface with 38.4 kbit/s data transmission rate
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems to ensure proper alignment, wiring, and configuration.
Applications
- Object detection
- Object recognition
- Height classification
- Object height measurement
- Switching output
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption.
- Durable aluminum housing extends product lifespan, reducing waste.
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK MLG30S-1620D10803 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
