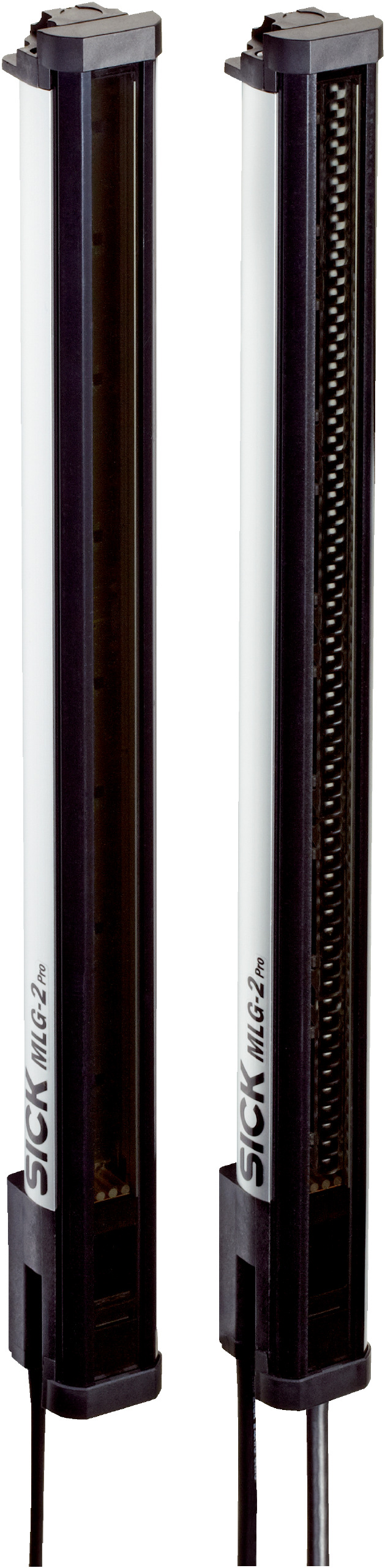

Automation Light Grid MLG50A-1000I10501 | 21 Beams | IP65/IP67 Rated | by SICK
The Automation Light Grid MLG50A-1000I10501 features 21 beams with 50 mm separation, designed for precise object detection and measurement in industrial automation. With an IP65/IP67 rating, it ensures durability in various environments, making it ideal for height classification and zone definition applications. This advanced sensor operates efficiently in temperatures from -30°C to +55°C, providing high measurement accuracy and reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid MLG50A-1000I10501 | 21 Beams | IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1217080
Alternatively Known As: Automation Light Grid, Light Curtain Sensor, Object Detection Grid, SICK Light Grid Sensor
Technical Specifications
- Dimensions (H x L x W): 100mm x 50mm x 1000mm
- Weight: 2.35 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle
- 21 beams with 50 mm beam separation
- Detection height of 1,000 mm
- Cable synchronization type
- Dust- and sunlight-resistant operating mode
- Cross beam and beam blanking functions
- High measurement accuracy
- LED infrared light source with 850 nm wavelength
- IP65 and IP67 enclosure rating
- Push-pull PNP/NPN switching output
- RS-485 and IO-Link V1.1 interfaces
- Operating temperature range from -30°C to +55°C
- Shock resistance up to 15 g and vibration resistance up to 5 g
- LED display for status indication
Professional Installation Requirements
- Professional installation by qualified personnel recommended to ensure proper setup and calibration.
Applications
- Object detection and width measurement
- Object recognition
- Height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient LED infrared light source
- High measurement accuracy reduces waste and improves process efficiency
Warranty Information
Warranty details available upon request from manufacturer.
Available Now
The SICK MLG50A-1000I10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and object measurement applications.
