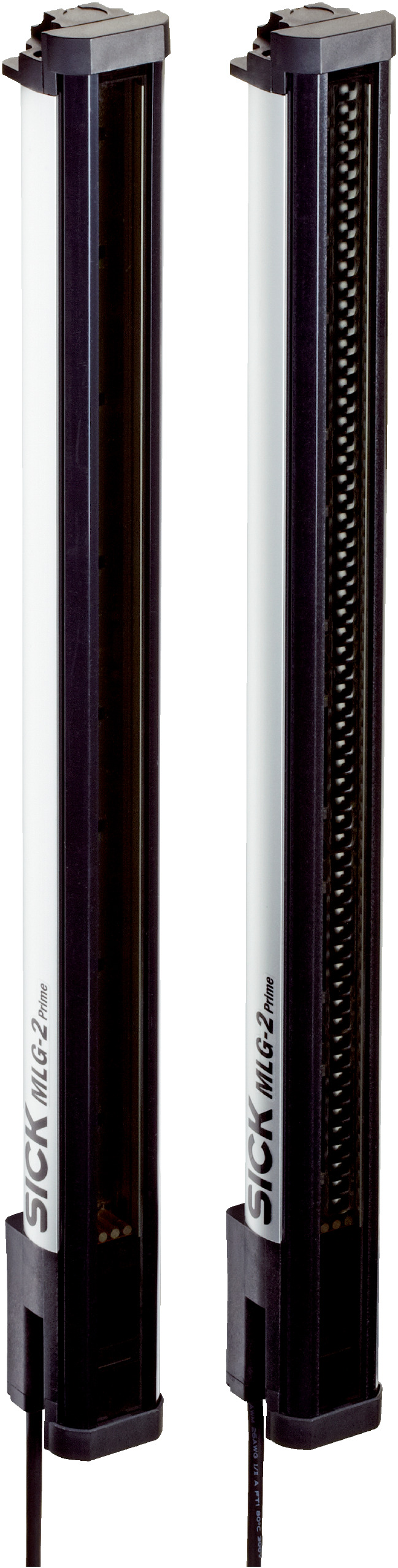

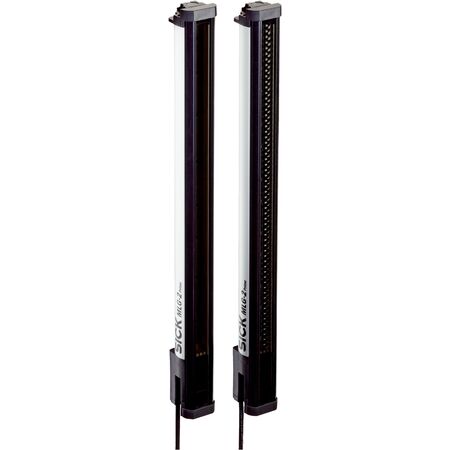

Automation Light Grid MLG50S-2500D10501 | 51 Beams | IP65 & IP67 Rated | 2500mm Detection Height | by SICK
The Automation Light Grid MLG50S-2500D10501 is designed for precise object detection and height classification in industrial automation. With 51 beams and a detection height of 2,500 mm, it features an LED infrared light source and robust IP65/IP67 rated enclosure. Ideal for applications requiring reliable performance in challenging environments, this light grid ensures accurate measurements and enhanced safety.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid MLG50S-2500D10501 | 51 Beams | IP65 & IP67 Rated | 2500mm Detection Height | by SICK
Brand: SICK
SKU: 1215423
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Height Classification Sensor
Technical Specifications
- Device version: Prime - Standard functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 54 mm
- Number of beams: 51
- Beam separation: 50 mm
- Detection height: 2,500 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 57.55 mA
- Power consumption receiver: 130.2 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: < 1 s
- Switching output: Push-pull PNP/NPN
- Connection type: Plug, M12, 5-pin, 0.22 m cable
- Housing material: Aluminum
- Enclosure rating: IP65, IP67
- Protection class: III
- Maximum range: 7 m
- Minimum range: ≥ 0.2 m
- Operating range: 5 m
- Response time: 7.3 ms
- IO-Link V1.1 interface with 38.4 kbit/s data rate
- Ambient operating temperature: -30°C to +55°C
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation 10-150 Hz
- Dimensions (H x L x W): 2500mm x 100mm x 50mm
- Weight: 5.3 kg
Key Features
- Prime - Standard functionality device version
- Sender/receiver sensor principle
- Minimum detectable object size of 54 mm
- 51 beams with 50 mm beam separation
- Optical synchronization
- Detection height of 2,500 mm
- Auto-define height classification software features
- Cross beam and beam blanking functions
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP65 and IP67 rated enclosure
- LED display
- Circuit protection including reverse polarity and short-circuit protection
- IO-Link V1.1 interface with 38.4 kbit/s data transmission rate
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial sensor systems to ensure proper alignment, wiring, and configuration.
Applications
- Object detection
- Object recognition
- Height classification
- Object height measurement
- Switching output
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable aluminum housing extends product lifespan, reducing waste
- Complies with RoHS standards limiting hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG50S-2500D10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation applications requiring precise object detection and height classification.
