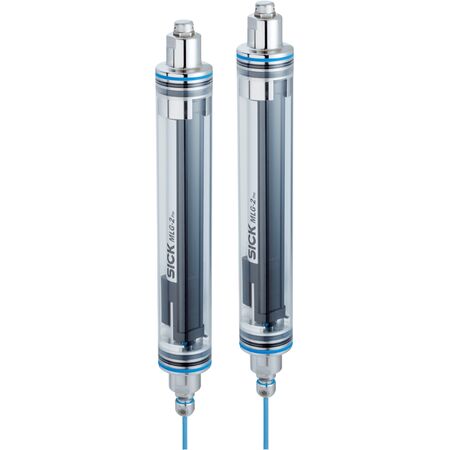

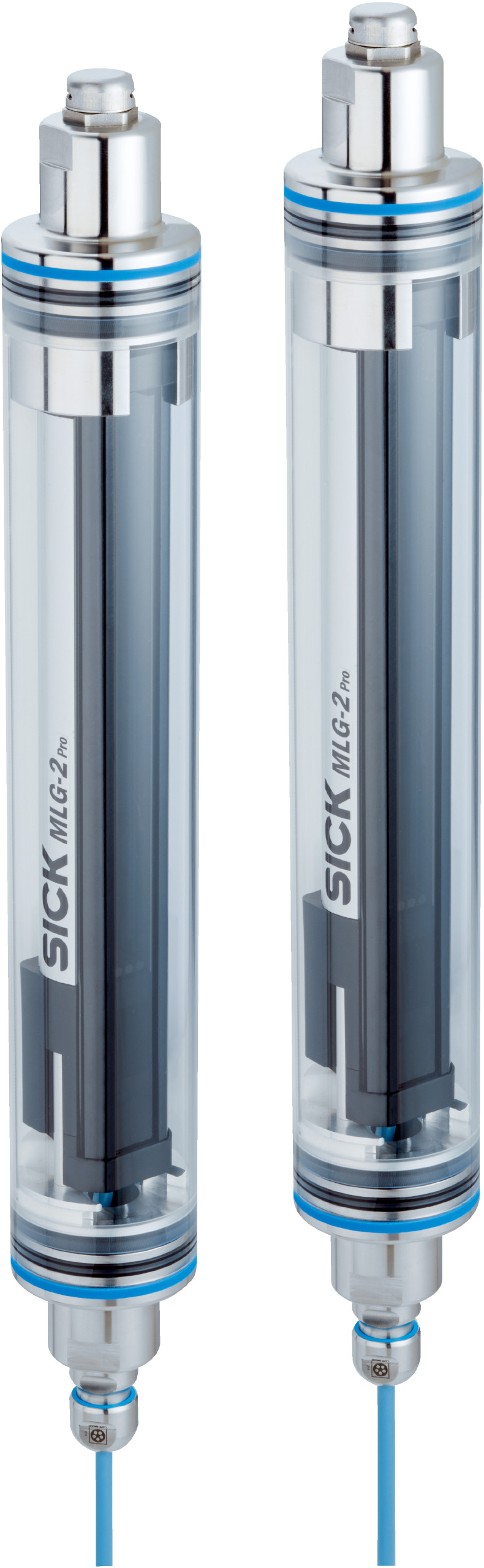

Automation Light Grid | Pro Device with 24 Beams | IP69K Rated | by SICK
The Automation Light Grid is designed for precise object detection and measurement, featuring a pro device version with 24 beams and a minimum detectable object size of 25 mm. Ideal for industrial automation and safety applications, it offers fast initialization under 1 second and operates in a wide temperature range from -20°C to +55°C, ensuring reliability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid | Pro Device with 24 Beams | IP69K Rated | by SICK
Brand: SICK
SKU: 1121700
Alternatively Known As: Automation light grid, Safety light curtain, Object detection light grid, Industrial light barrier, SICK light grid sensor
Technical Specifications
- Device version: Pro - Extended functionality
- Sensor principle: Sender/receiver
- Minimum detectable object: 25 mm
- Number of beams: 24
- Detection height: 575 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 56.2 mA
- Power consumption receiver: 124.8 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 8-pin male connectors
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Enclosure rating: IP69K
- Initialization time: < 1 second
- Maximum range: 5.25 m
- Operating range: 3.75 m
- Response time: 3.6 ms
- Interfaces: IO-Link V1.1, Analog current output 4-20 mA
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- Ambient operating temperature: -20°C to +55°C
- Dimensions (H x L x W): 575mm x 100mm x 50mm
- Weight: 1.76 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 24 beams
- Minimum detectable object size of 25 mm
- Beam separation of 25 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- IP69K rated aluminum housing with protective pipes
- Fast initialization time under 1 second
- Supports IO-Link V1.1 and analog current outputs
- Robust against shocks and vibrations
- Wide ambient operating temperature range from -20°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup, calibration, and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition in automation processes
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K rated housing ensures long product life and reduces waste
- Supports precise object detection reducing material waste in manufacturing
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG25A-0575B50501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection and measurement.
