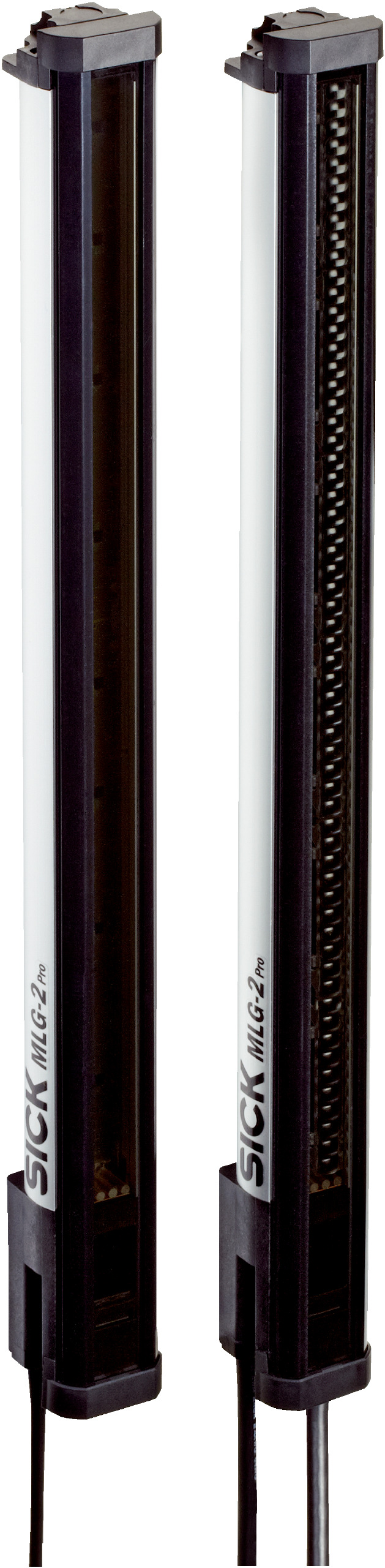

Automation Light Grid | Pro Version | 60 Beams & IP65/IP67 Rated | by SICK
The Automation Light Grid is a pro version device designed for precise object detection and measurement in industrial automation. With 60 beams and a minimum detectable object size of 10 mm, it operates in various modes including standard and dust-resistant. Ideal for safety applications, this robust light grid features an IP65/IP67 enclosure rating, ensuring durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid | Pro Version | 60 Beams & IP65/IP67 Rated | by SICK
Brand: SICK
SKU: 1213784
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Industrial Light Barrier
Technical Specifications
- Dimensions (H x L x W): 590mm x 100mm x 50mm
- Weight: 1.45 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 60 beams
- Minimum detectable object size of 10 mm
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67 for robust protection
- Fast initialization time under 1 second
- Supports IO-Link V1.1 and analog current outputs
- Shock resistance up to 15 g and vibration resistance up to 5 g
- Wide ambient operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Measurement of outside and inside dimensions
- Object and hole position measurement
- Zone definition in automation processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing and PMMA front screen for long product life
- Energy-efficient LED infrared light source reduces power consumption
- Robust design minimizes maintenance and replacement waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed terms.
Available Now
The SICK MLG10A-0590B10802 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
