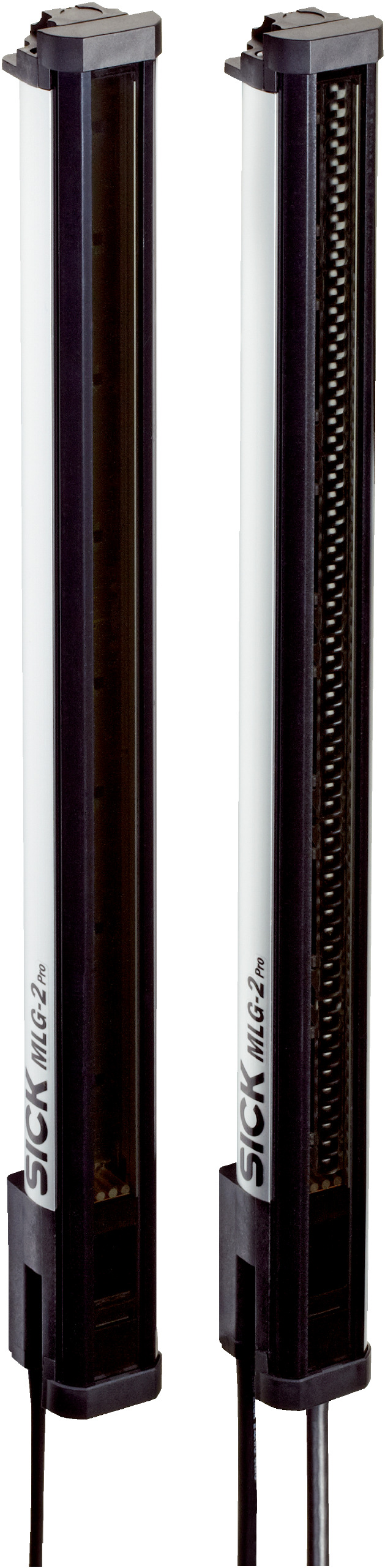

Automation Light Grid | Pro Version with 8 Beams | IP65 & IP67 Rated | by SICK
The Automation Light Grid is a pro version sensor featuring 8 beams for precise object detection and measurement. With a minimum detectable object size of 20 mm and robust IP65/IP67 enclosure ratings, it's perfect for industrial automation and safety applications. Designed for high measurement accuracy and fast response times, this light grid ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid | Pro Version with 8 Beams | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1217865
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Sensor, Industrial Light Grid Sensor
Technical Specifications
- Dimensions (H x L x W): 50mm x 200mm x 140mm
- Weight: 0.55 kg
Key Features
- Pro - Extended functionality device version
- Sender/receiver sensor principle with 8 beams
- Minimum detectable object size of 20 mm
- Beam separation of 20 mm and detection height of 140 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Push-pull PNP/NPN switching output
- Enclosure rating IP65 and IP67 for robust protection
- IO-Link V1.1 and analog current outputs
- Fast response time of 3.5 ms
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for automation processes
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable aluminum housing reduces need for frequent replacements
- Energy-efficient LED infrared light source minimizes power consumption
- High measurement accuracy reduces waste and improves process efficiency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK MLG20A-0140B10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications.
