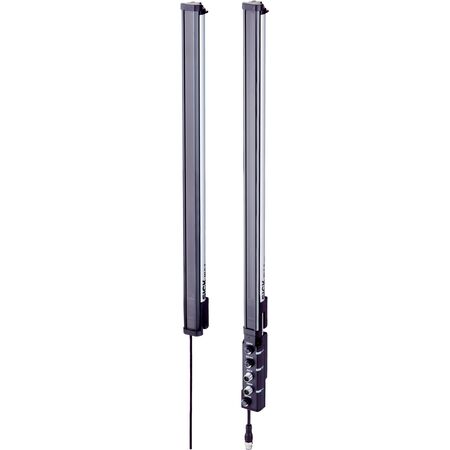

Automation Light Grid | ProNet Device with 120 Beams | IP65 & IP67 Rated | by SICK
The Automation Light Grid is designed for precise object detection and measurement in industrial automation. Featuring a ProNet device version with 120 beams and robust aluminum housing, it ensures high measurement accuracy and durability. Ideal for applications like object recognition and height classification, this light grid supports various operating modes and is built to withstand harsh environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid | ProNet Device with 120 Beams | IP65 & IP67 Rated | by SICK
Brand: SICK
SKU: 1219995
Alternatively Known As: Automation Light Grid, Safety Light Curtain, Object Detection Light Grid, Industrial Light Barrier, SICK Light Grid Sensor
Technical Specifications
- Dimensions (H x L x W): 120mm x 100mm x 1200mm
- Weight: 2.65 kg
Key Features
- ProNet device version with extended functionality including fieldbus
- Sender/receiver sensor principle with 120 beams
- Minimum detectable object size of 10 mm to 14 mm
- Cable synchronization type
- Operating modes include standard, transparent, dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- Supply voltage DC 19.2 V to 28.8 V
- Push-pull PNP/NPN switching output
- Housing made of aluminum with IP65 and IP67 enclosure rating
- Short initialization time of less than 1 second
- Robust against shocks and vibrations
- Supports PROFIBUS DP DPV1 with autobaud data transmission rates from 9,600 kbit/s to 12 Mbit/s
Professional Installation Requirements
- Professional installation by qualified personnel is recommended to ensure proper setup and integration with fieldbus systems.
Applications
- Switching output for object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Measurement of outside and inside dimensions
- Object and hole position measurement
- Zone definition in automation processes
- Data interface for precise object and hole height measurement
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Durable aluminum housing ensures long product life reducing waste
- Energy-efficient LED infrared light source minimizes power consumption
- High measurement accuracy reduces errors and material waste in automation
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK MLG10N-1190P10501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection and measurement.
