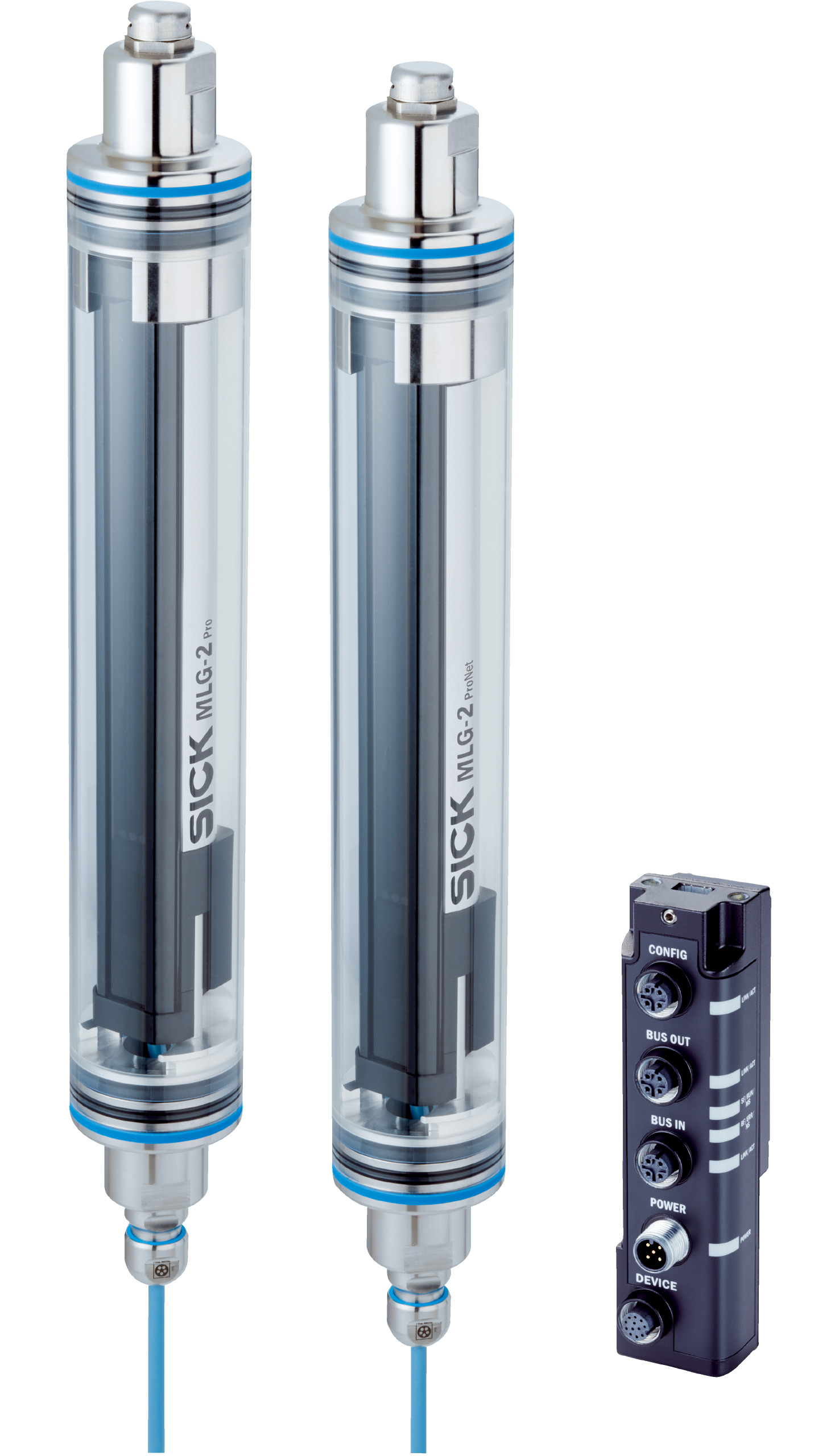

Automation Light Grid | ProNet Extended Functionality | 240 Beams | IP69K Rated | by SICK
The Automation Light Grid is designed for precise object detection and measurement, featuring ProNet extended functionality and a sender/receiver sensor principle with 240 beams. With a minimum detectable object size of just 5 mm and an IP69K rated housing, it's perfect for harsh industrial environments, ensuring reliable performance in automation processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Automation Light Grid | ProNet Extended Functionality | 240 Beams | IP69K Rated | by SICK
Brand: SICK
SKU: 1150333
Alternatively Known As: Automation light grid, Safety light curtain, Industrial light grid sensor, ProNet light grid
Technical Specifications
- Device version: ProNet with extended functionality including fieldbus
- Sensor principle: Sender/receiver
- Minimum detectable object: 5 mm
- Beam separation: 5 mm
- Number of beams: 240
- Detection height: 1195 mm
- Light source: LED, Infrared light at 850 nm wavelength
- Supply voltage: DC 19.2 V to 28.8 V
- Power consumption sender: 67 mA
- Power consumption receiver: 168 mA
- Fieldbus module current consumption: 115 mA
- Output current max: 100 mA
- Output load capacitive: 100 nF
- Output load inductive: 1 H
- Initialization time: less than 1 second
- Switching output: Push-pull PNP/NPN
- Connection type: Plug M12, 5-pin and 12-pin connectors
- Housing material: Aluminum, PMMA Plexiglas XT, Polypropylene, Stainless steel
- Enclosure rating: IP69K
- Circuit protection: Reverse polarity, short-circuit, interference pulse suppression
- Protection class: III
- Maximum range: 5.25 m
- Operating range: 3.75 m
- Response time: 19.8 ms
- Shock resistance: 10 g continuous, 15 g single shocks
- Vibration resistance: 5 g sinusoidal oscillation
- EMC: EN 60947-5-2
- Ambient light immunity: Direct 150,000 lx, Indirect 200,000 lx
- Operating temperature: -20°C to +55°C
- Storage temperature: -40°C to +70°C
- Digital output: 1
- EtherNet/IP™ support
- Dimensions (H x L x W): 150mm x 100mm x 1200mm
- Weight: 3 kg
Key Features
- ProNet extended functionality including fieldbus
- Sender/receiver sensor principle with 240 beams
- Minimum detectable object size down to 5 mm
- Operating modes: Standard, Transparent, Dust- and sunlight-resistant
- Functions include cross beam, beam blanking, high-speed scan, and high measurement accuracy
- LED infrared light source with 850 nm wavelength
- IP69K rated protective housing for harsh environments
- Push-pull PNP/NPN switching output
- Fast initialization time under 1 second
Professional Installation Requirements
- Installation should be performed by qualified professionals familiar with industrial automation and electrical safety standards to ensure proper setup and compliance.
Applications
- Object detection and object width measurement
- Object recognition and height classification
- Hole detection and hole size measurement
- Outside and inside dimension measurement
- Object and hole position measurement
- Zone definition for automation processes
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
- AS/NZS 3112 – Plugs and Socket-Outlets (Type I Plug)
Environmental Benefits
- Energy-efficient LED infrared light source reduces power consumption
- Durable IP69K rated housing minimizes waste through extended product life
- Compliant with China RoHS for reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

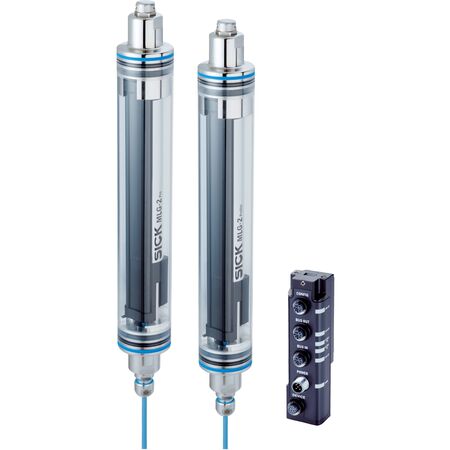

The SICK MLG05N-1195H50501 Automation Light Grid is available for immediate purchase, ideal for industrial automation and safety applications requiring precise object detection and measurement.
