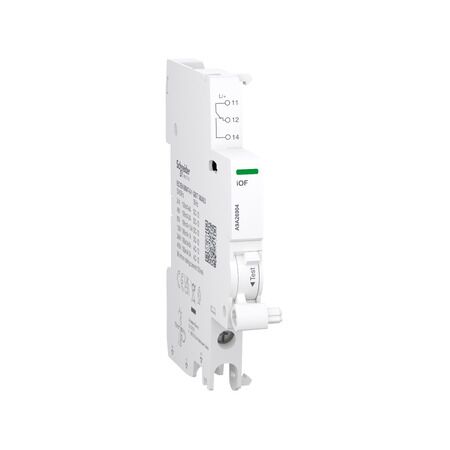

Auxiliary Contact 1 C/O | 100mA to 6A | 24-415VAC | Bottom Connection by Clipsal

BRAND: Clipsal
SKU: A9A26904
$42.50 List price: $63.80
+ −
30 Days Return Delivery Options
Auxiliary contact with 1 C/O configuration and 100mA to 6A range—ideal for small commercial and industrial circuit protection. Built for compatibility with Acti9 range, featuring DIN rail mounting for easy installation.

Product Name/Title: Acti9, Auxiliary contact, iOF, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24-130 VDC, bottom connection

Brand: Clipsal

SKU: A9A26904

Alternatively Known As: Acti9 iOF, Auxiliary Contact, Circuit Protection Contact

Technical Specifications
  • Rated current: 0.1...6 A at 24...240 V AC, 0.1...3 A at 415 V AC, 0.1...6 A at 24 V DC
  • Rated insulation voltage: 500 V
  • Rated impulse withstand voltage: 4 kV
  • IP Rating: IP20
  • Operating temperature: -35...70 °C
  • Storage temperature: -40...85 °C
  • Pollution degree: 3
  • Tropicalisation: 2
  • Dimensions (H x L x W): 86mm x 73mm x 9mm
  • Weight: 0.04 kg
Key Features
  • 1 C/O contact configuration
  • Rated current from 100mA to 6A
  • Compatible with Acti9 range
  • DIN rail mounting
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended for optimal safety.
Applications
  • Small commercial buildings
  • Industrial applications requiring circuit protection
Standards & Compliance
  • Complies with CE and UKCA standards.
Environmental Benefits
  • Complies with EN/IEC 60947-5-1 for safety and performance standards.
Warranty Information

Standard warranty applies.

Available Now

The Clipsal Acti9 Auxiliary Contact iOF is available now for immediate purchase. Ideal for small commercial buildings and industrial applications.

A9A26904 (A9A26904, 200 Kb) [Download]
