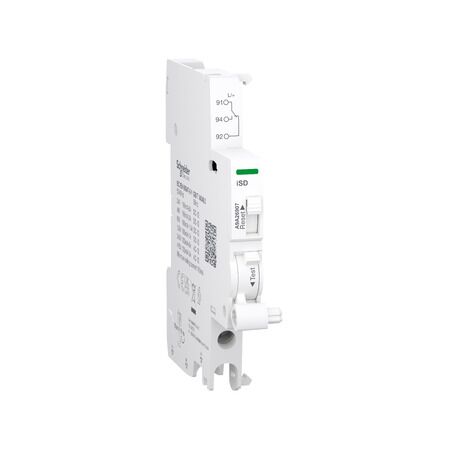

Acti9, Auxiliary contact, iSD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection

Auxiliary Contact 1 C/O | 100mA to 6A | 24VAC to 415VAC | Bottom Connection by Clipsal

BRAND: Clipsal

SKU: A9A26907

$51.00 List price: $76.50

+ −

30 Days Return Delivery Options

Auxiliary contact with 1 C/O and 100mA to 6A range—ideal for small commercial buildings and industrial applications. Built for compatibility with the Acti9 range, featuring clip-on mounting for easy installation.

Description
Attachments

Product Name/Title: Acti9, Auxiliary contact, iSD, 1 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, bottom connection

Brand: Clipsal

SKU: A9A26907

Alternatively Known As: Acti9 iSD, Auxiliary Contact, Fault Contact

Technical Specifications

Rated current: 0.1...6 A at 24...240 V AC, 50/60 Hz
Rated insulation voltage: 500 V
Rated impulse withstand voltage: 4 kV
IP degree of protection: IP20
Ambient air temperature for operation: -35...70 °C
Pollution degree: 3
Tropicalisation: 2
Dimensions (H x L x W): 86mm x 73mm x 9mm
Weight: 0.04 kg

Key Features

Rated current from 0.1 to 6 A
Compatible with Acti9 range
Mechanical indicator for local signaling
Clip-on mounting for easy installation
DIN rail mounting support

Professional Installation Requirements

Professional installation is recommended for optimal performance and safety.

Applications

Small commercial buildings
Industrial applications requiring fault contact solutions

Standards & Compliance

Complies with EN/IEC 60947-5-1 and GB/T 14048.5 standards.

Environmental Benefits

Complies with environmental regulations and standards.

Warranty Information

Standard warranty applies as per manufacturer guidelines.

Available Now

The Clipsal Acti9 Auxiliary Contact iSD is available now for immediate purchase. Ideal for small commercial buildings and industrial applications.

A9A26907 (A9A26907, 200 Kb) [Download]
