Acti9, Auxiliary contact, OF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection

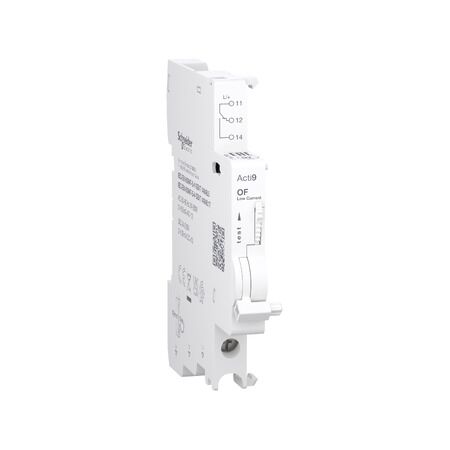

Auxiliary Contact 1 C/O | 2mA-100mA | 24VAC-250VAC | Bottom Connection by Clipsal

BRAND: Clipsal

SKU: A9N26914

$104.40 List price: $156.50

+ −

30 Days Return Delivery Options

Auxiliary contact with 1 C/O configuration and 2mA to 100mA current range—ideal for small commercial and critical buildings. Built for versatile applications, with bottom connection and DIN rail mounting support.

Description
Attachments

Product Name/Title: Acti9, Auxiliary contact, OF, 1 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, bottom connection

Brand: Clipsal

SKU: A9N26914

Alternatively Known As: Auxiliary contact, Acti9 OC contact

Technical Specifications

Rated insulation voltage: 500V
Rated impulse withstand voltage: 4kV
Pollution degree: 3
Tropicalisation: 2
Signal contacts composition: 1 C/O
Dimensions (H x L x W): 85.3mm x 68mm x 9mm
Weight: 0.038 kg

Key Features

Rated current: 2mA to 100mA
Compatible with Acti9 range
Clip-on mounting mode
DIN rail mounting support
IP20 protection rating
Operating temperature: -25°C to 70°C

Professional Installation Requirements

Professional installation is recommended for optimal performance.

Applications

Small commercial buildings
Critical buildings
Healthcare
Industry
Data centers
Infrastructures

Standards & Compliance

Complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4 standards.

Environmental Benefits

Complies with environmental regulations and standards.

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Acti9 Auxiliary Contact is available now for immediate purchase. Ideal for small commercial and critical building applications.

A9N26914 (A9N26914, 199 Kb) [Download]
