Trade Discount 20%

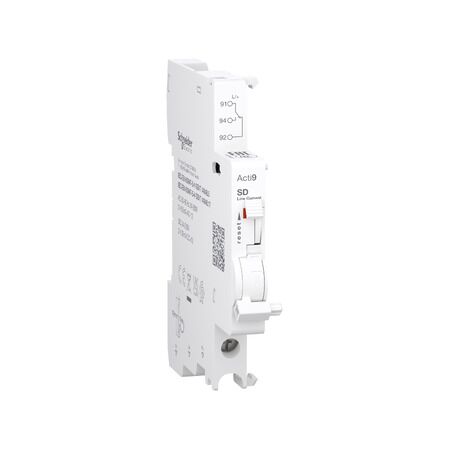

Auxiliary Contact 1 C/O | 2mA to 100mA | 24VAC to 250VAC | Bottom Connection by Clipsal
Auxiliary contact with 1 C/O and 2mA to 100mA range—ideal for small commercial and critical buildings. Built for compatibility with Acti9 range, featuring mechanical indicator for local signaling.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Rated insulation voltage: 500 V
- Rated impulse withstand voltage: 4 kV
- IP Rating: IP20
- Operating temperature: -25...70 °C
- Pollution degree: 3
- Tropicalisation: 2
- Dimensions (H x L x W): 85.3mm x 68mm x 9mm
- Weight: 0.1 kg
Key Features
- Rated current: 2mA to 100mA
- Compatible with Acti9 range
- Mechanical indicator for local signaling
- Daisy chain operation up to 100 devices
Professional Installation Requirements
- Professional installation is recommended for optimal performance.
Applications
- Small commercial buildings
- Critical buildings
- Healthcare
- Industry
- Data centers
- Infrastructures
Standards & Compliance
- Complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4 standards.
Environmental Benefits
- Complies with environmental regulations and standards.
Warranty Information
Standard warranty applies.
Available Now
The Clipsal Acti9 Auxiliary Contact SD is available now for immediate purchase. Ideal for various commercial and industrial applications.
