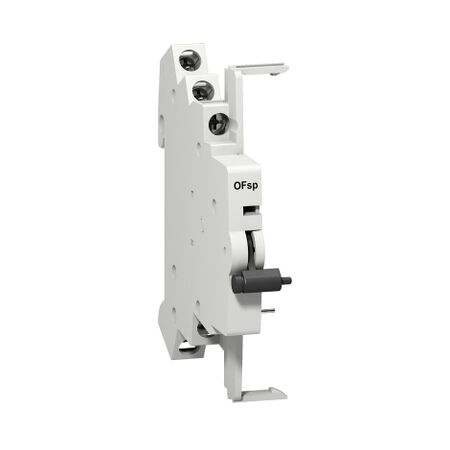

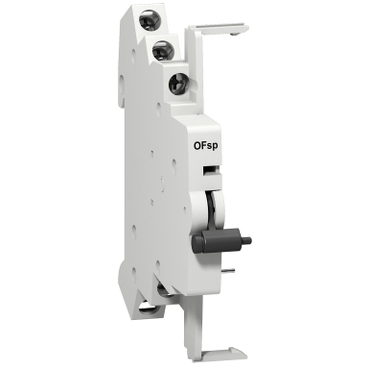

Auxiliary Contact 1 NC and 1 O | 690V AC Rated | Snap-On Mounting | by Clipsal
The Auxiliary Contact 1 NC and 1 O is designed for reliable signaling in industrial control panels and automation systems. With a rated operational voltage of 690V AC and a compact snap-on design, it provides efficient control and monitoring. Ideal for licensed electricians, this contact block ensures compliance with Australian standards and enhances energy management in electrical systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 1 NC and 1 O | 690V AC Rated | Snap-On Mounting | by Clipsal
Brand: Clipsal
SKU: SCH16940
Alternatively Known As: Auxiliary Switch, Auxiliary Contact Block, SCH16940, Clipsal 1NC 1NO Auxiliary, Control Circuit Auxiliary Contact
Technical Specifications
- Contact configuration: 1 NC + 1 NO
- Rated operational voltage: 690V AC
- Rated current: 6A (AC-15), 2A (DC-13)
- Mounting: Snap-on to compatible circuit breakers/contactors
- Standards: IEC 60947-5-1
- Operating temperature: -25°C to +55°C
- Dimensions (H x L x W): 85mm x 70mm x 18mm
- Weight: 0.1 kg
Key Features
- Provides 1 normally closed (NC) and 1 normally open (NO) contact
- Easy snap-on mounting to compatible devices
- Reliable auxiliary signaling for circuit breakers and contactors
- Compact design for space-saving installation
- Clear status indication
Professional Installation Requirements
- Installation must be performed by a licensed electrician to ensure compliance with Australian standards and safe operation.
Applications
- Industrial control panels
- Motor starters
- Switchboards
- Automation systems
- Electrical distribution boards
Standards & Compliance
- Complies with AS/NZS 60947 for low-voltage switchgear and controlgear.
Environmental Benefits
- Enables efficient control and monitoring, supporting energy management in electrical systems.
- Durable design reduces replacement frequency and electronic waste.
Warranty Information
12 months manufacturer's warranty against defects.
Available Now
The Clipsal Auxiliary Contact 1 NC and 1 NO SCH16940 is available for immediate purchase. Ideal for use in industrial control panels, switchboards, and automation systems.
