Auxiliary Contact 1NC | Front Mount | 5A Rated | Compact by NHP
Auxiliary contact with 1NC contact and front mounting—ideal for motor protection and control systems. Built for industrial and commercial use, with reliable 5A operation and compact design.
Sign in
Please login to continue to your account.

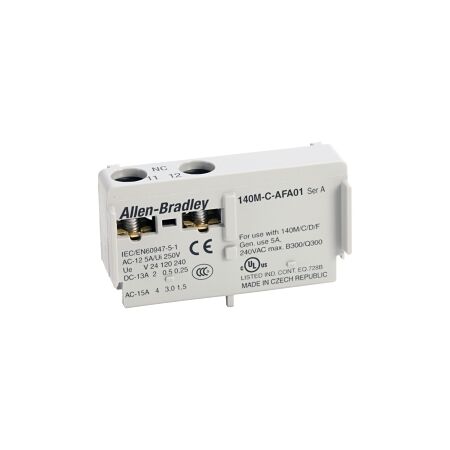

Product Name/Title: Allen-Bradley 140M Auxiliary Contact with 1NC Contact Front Mount
Brand: NHP
SKU: 140MCAFA01
Alternatively Known As: 140MCAFA01, Auxiliary Contact Block, Motor Protection Auxiliary Contact
- Number of Contacts: 1 NC
- Rated Operation Current (IE) at 40°C: 5 A
- Rated Operation Current (IE) at AC 15 24V: 4 A
- Rated Operation Current (IE) at AC 15 120V: 3 A
- Rated Operation Current (IE) at AC 15 240V: 1.5 A
- Rated Operation Current (IE) at DC 13 24V: 2 A
- Rated Operation Current (IE) at DC 13 110V: 0.5 A
- Rated Operation Current (IE) at DC 13 220V: 0.25 A
- Mounting Method: Front fastening
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.3 kg
- 1 Normally Closed (NC) contact for reliable operation.
- Front mounting method for easy installation.
- Professional installation by a qualified electrician is recommended for optimal safety.
- Industrial: Motor protection and control systems
- Commercial: Equipment requiring auxiliary contacts
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
- Enhances safety and reliability in electrical systems, reducing the risk of failures.
1 year warranty against manufacturing defects.
The Allen-Bradley 140M Auxiliary Contact with 1NC Contact Front Mount is available now for immediate purchase. Ideal for industrial and commercial applications requiring reliable motor protection.
