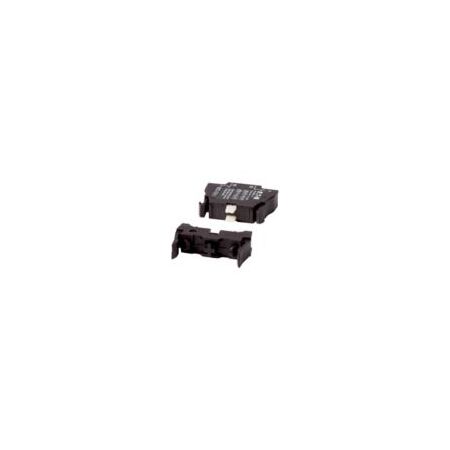

Auxiliary Contact 1NO 1NC | 6A Switching Duty | Screw Connection & Front Fastening by Eaton
The AUX1NO+1NC-BOX012 auxiliary contact features a 1 Normally Open and 1 Normally Closed configuration with a 6A switching duty at 230V AC. Ideal for electrical panels and industrial automation, it ensures secure wiring with a screw connection and is built for durability in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 1NO 1NC | 6A Switching Duty | Screw Connection & Front Fastening by Eaton
Brand: Eaton
SKU: Y8-6028293
Alternatively Known As: Eaton Auxiliary Contact 1NO 1NC, AUX1NO+1NC, Auxiliary Switch for DDC QSA
Technical Specifications
- Product Length/Depth: 160 mm
- Product Height: 10 mm
- Product Width: 100 mm
- Product Weight: 0.026 kg
- Switching duty: 6 A, 230 V AC
- Electric connection type: Screw connection
- Mounting method: Front fastening
- Model: Top mounting
- Rated operational current (Ie) at AC-15, 220-240 V: 4 A
- Rated operational current for specified heat dissipation (In): 6 A
- Ambient operating temperature: -25 °C to 50 °C
- Heat dissipation per pole, current-dependent: 0.11 W
- Dimensions (H x L x W): 10mm x 160mm x 100mm
- Weight: 0.03 kg
Key Features
- 1 Normally Open (N/O) and 1 Normally Closed (N/C) contact configuration
- Switching duty of 6 A at 230 V AC
- Screw connection type for secure wiring
- Front fastening mounting method with top mounting model
- Includes adapter with supplied equipment
- Ambient operating temperature range from -25 °C to 50 °C
- Meets product standard requirements for corrosion resistance, thermal stability, UV resistance, and mechanical function
Professional Installation Requirements
- Installation should be performed by a qualified electrician to ensure compliance with electrical standards and safety regulations.
Applications
- Electrical panels requiring auxiliary contacts for control and signaling
- Industrial automation and control systems
- Switchgear assemblies with DDC and QSA devices
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power dissipation contributes to energy efficiency in electrical systems
- Durable design reduces need for frequent replacements, minimizing waste
Warranty Information
Standard Eaton warranty applies; please refer to Eaton's official warranty policy for details.
Available Now
The Eaton AUX1NO+1NC-BOX012 auxiliary contact is available for immediate purchase, ideal for electrical panel control and industrial automation applications.
