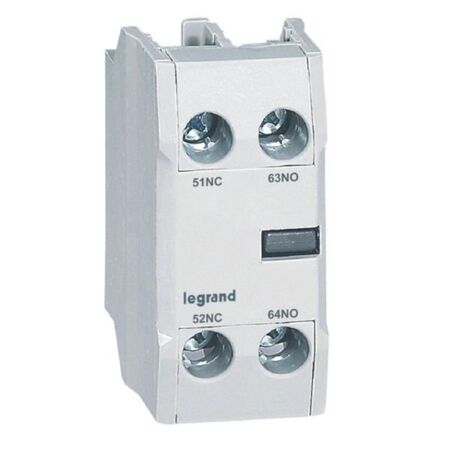

Auxiliary Contact 1NO 1NC for CTX3 Front Mount 230V Grey Legrand

BRAND: Legrand
SKU: 416850
$20.00 List price: $24.90
1 EA ($20.00 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Legrand auxiliary contact features 1NO + 1NC auxiliary contact unit with Ith = 16A.
Technical Specifications
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 1
  • Number of contacts as normally closed contact: 1
  • Rated operation current Ie at AC-15, 230 V: 3 A
  • Screw terminals capacity: 2 x 1mm² to 2.5mm²
  • Minimum switching voltage: 24V DC
  • Minimum switching current: 10mA
  • Type of electric connection: Screw connection
  • Mounting method: Front fastening
  • Model: Clip-on
  • Dimensions (H x L x W): 50mm x 40mm x 30mm
  • Weight: 0.1 kg
Key Features
  • 1NO + 1NC auxiliary contact unit with Ith = 16A
  • NC auxiliary contact meets mirror contact definition per IEC 60947-4-1
  • Screw terminals capacity: 2 x 1mm² to 2.5mm²
  • Front mounting on CTX3 3P and 4P contactors
  • Minimum switching voltage: 24V DC
  • Minimum switching current: 10mA
  • Screw connection type with clip-on model
  • Rated operation current Ie at AC-15, 230 V: 3 A
Professional Installation Requirements
  • Professional installation by a qualified electrician is recommended to ensure proper mounting and electrical connection.
Applications
  • Tertiary and industrial motor control and protection installations
  • Use with CTX3 3P contactors rated 9A to 150A
  • Use with CTX3 4P contactors rated 40A to 135A
Standards & Compliance
  • AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
  • Designed with an environmentally conscious process
  • Complies with substance-restriction requirements
Warranty Information

Standard Legrand warranty applies, typically 1 year against manufacturing defects.

Available Now

Available for immediate purchase, ideal for industrial and tertiary motor control applications.

Technical Guide: Protection and control of 3-phase asynchronous motors (EXB19046_TG_3phase-asynchronous-motors_EN.pdf, 5,963 Kb) [Download]

ex223001_0287 (ex223001_0287.pdf, 48 Kb) [Download]

ex223001_0286 (ex223001_0286.pdf, 106 Kb) [Download]

ex223001_0288-0289 (ex223001_0288-0289.pdf, 95 Kb) [Download]
