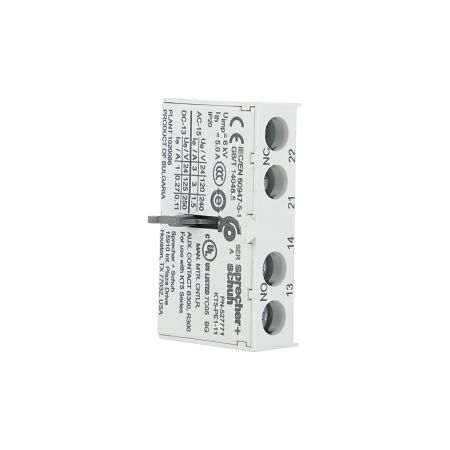

Auxiliary Contact 1NO 1NC | Front Mount | 250V Rated by NHP
Auxiliary contact with 1NO and 1NC configuration—ideal for motor protection and control systems. Built for industrial and commercial use, with front mounting for easy installation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of Contacts: 1 NO, 1 NC
- Rated Insulation Voltage: 250 V
- Rated Operation Current (AC 15, 240 V): 1.5 A
- Rated Operation Current (DC 13, 250 V): 0.11 A
- Min Contact Rating Current: 5 mA
- Min Contact Rating Voltage: 17 V
- Mounting Method: Front fastening
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
- Front mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection and control systems
- Commercial: Electrical panels and machinery
Standards & Compliance
- Complies with AS/NZS 3000 for electrical installation standards.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of failures.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT5 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for industrial and commercial electrical applications.
