Auxiliary Contact 1NO 1NC | Front Mount | 250V Rated by NHP
Auxiliary contact with 1NO and 1NC configuration—ideal for motor protection in industrial and commercial settings. Built for easy front mounting, with 250V rated insulation for reliable equipment control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

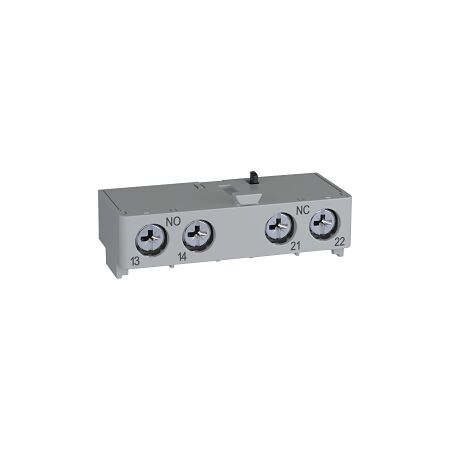

Product Name/Title: S+S KT9 Auxiliary Contact with 1NO Contact and 1NC Contact Front Mount
Brand: NHP
SKU: KT9PE111
Alternatively Known As: KT9 Auxiliary Contact, Motor Protection Auxiliary Contact
Technical Specifications
- Number of Contacts: 1 NO, 1 NC
- Rated Insulation Voltage: 250 V
- Rated Operation Current at 40°C: 5 A
- Rated Operation Current at AC 15 24 V: 4 A
- Rated Operation Current at AC 15 120 V: 3 A
- Rated Operation Current at AC 15 240 V: 1.5 A
- Rated Operation Current at DC 13 24 V: 1.2 A
- Rated Operation Current at DC 13 125 V: 0.22 A
- Rated Operation Current at DC 13 250 V: 0.11 A
- Mounting Method: Front fastening
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.3 kg
Key Features
- 1 Normally Open (NO) and 1 Normally Closed (NC) contact configuration.
- Front mounting for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection applications
- Commercial: Equipment control and automation
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances equipment longevity by providing reliable protection.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT9 Auxiliary Contact with 1NO and 1NC Contact is available now for immediate purchase. Ideal for motor protection in industrial and commercial applications.
