Auxiliary Contact 1NO 1NC | Side Mount | 10A Rated by NHP
Auxiliary contact with 1NO and 1NC configuration—ideal for motor protection and control systems. Built for industrial and commercial use, with side mounting for easy installation and 10A rated operation.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

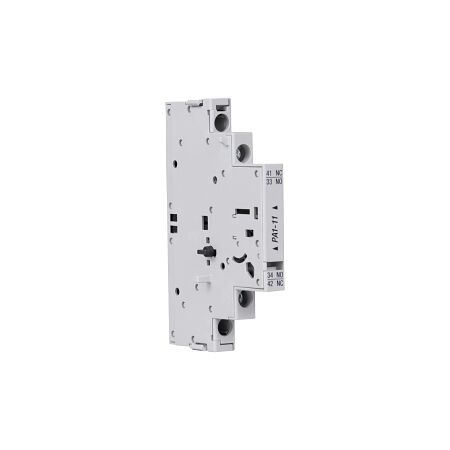

Product Name/Title: S+S KT7 Auxiliary Contact with 1NO Contact and 1NC Contact Side Mount
Brand: NHP
SKU: KT7PA111
Alternatively Known As: KT7 Auxiliary Contact, Motor Protection Auxiliary Contact
Technical Specifications
- Number of Contacts: 1 NO, 1 NC
- Rated Operation Current at 40°C: 10 A
- Rated Operation Current at AC 15, 24 V: 6 A
- Rated Operation Current at AC 15, 120 V: 5 A
- Rated Operation Current at AC 15, 240 V: 3 A
- Rated Operation Current at AC 15, 400 V: 2 A
- Rated Operation Current at DC 13, 24 V: 2 A
- Rated Operation Current at DC 13, 110 V: 0.5 A
- Rated Operation Current at DC 13, 220 V: 0.25 A
- Mounting Method: Side mounting
- Dimensions (H x L x W): 30mm x 70mm x 50mm
- Weight: 0.3 kg
Key Features
- Includes 1 Normally Open (NO) and 1 Normally Closed (NC) contact.
- Side mounting design for easy installation.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Motor protection and control systems
- Commercial: Equipment requiring auxiliary contacts
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Enhances safety in electrical systems, reducing the risk of equipment failure.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The S+S KT7 Auxiliary Contact is available now for immediate purchase. Ideal for motor protection and control applications.
