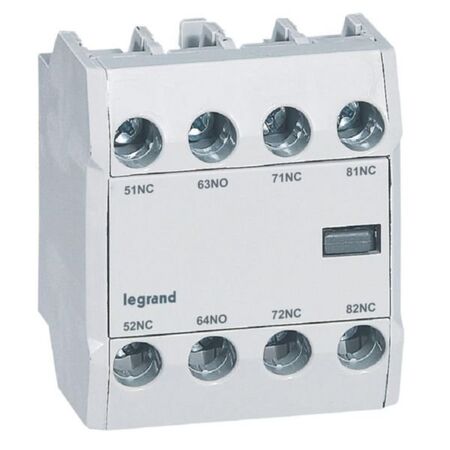

Auxiliary Contact 1NO 3NC for CTX3 Front Mount 230V Grey Legrand

BRAND: Legrand
SKU: 416856
$32.40 List price: $40.40
1 EA ($32.40 per EA)
+ −
30 Days Return Electricians Unlock Trade Access
Legrand auxiliary contact features 1 NO (NO) and 3 NC (NC) auxiliary contacts, Screw terminals capacity: 2 x 1mm² to 2.5mm² and Minimum switching voltage: 24V DC.
Technical Specifications
  • Number of contacts as change-over contact: 0
  • Number of contacts as normally open contact: 1
  • Number of contacts as normally closed contact: 3
  • Rated operation current Ie at AC-15, 230 V: 3 A
  • Type of electric connection: Screw connection
  • Model: Clip-on
  • Mounting method: Front fastening
  • Screw terminals capacity: 2 x 1mm² to 2.5mm²
  • Minimum switching voltage: 24V DC
  • Minimum switching current: 10mA
  • Dimensions (H x L x W): 60mm x 70mm x 30mm
  • Weight: 0.1 kg
Key Features
  • 1 Normally Open (NO) and 3 Normally Closed (NC) auxiliary contacts
  • NC auxiliary contact meets IEC 60947-4-1 mirror contact definition
  • Screw terminals capacity: 2 x 1mm² to 2.5mm²
  • Minimum switching voltage: 24V DC
  • Minimum switching current: 10mA
  • Rated operational current Ie at AC-15, 230 V: 3 A
  • Clip-on model with front fastening for easy installation
  • Designed with environmentally conscious processes and substance-restriction compliance
Professional Installation Requirements
  • Installation by a qualified electrician is recommended to ensure compliance with electrical standards and safety.
Applications
  • Tertiary and industrial motor control and protection installations
  • Use with CTX3 3P contactors from 9A to 150A
  • Use with CTX3 4P contactors from 40A to 135A
Standards & Compliance
  • Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
  • Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
  • Designed with substance-restriction compliance to reduce environmental impact
  • Manufactured using environmentally conscious processes
Warranty Information

Standard Legrand warranty applies; typically 1 to 3 years depending on region and product registration.

Available Now

Legrand Auxiliary Contact 1NO3NC for CTX3 3P and 4P is available for immediate purchase, ideal for industrial and tertiary motor control applications.

Technical Guide: Protection and control of 3-phase asynchronous motors (EXB19046_TG_3phase-asynchronous-motors_EN.pdf, 5,963 Kb) [Download]

ex223001_0287 (ex223001_0287.pdf, 48 Kb) [Download]

ex223001_0286 (ex223001_0286.pdf, 106 Kb) [Download]

ex223001_0288-0289 (ex223001_0288-0289.pdf, 95 Kb) [Download]
