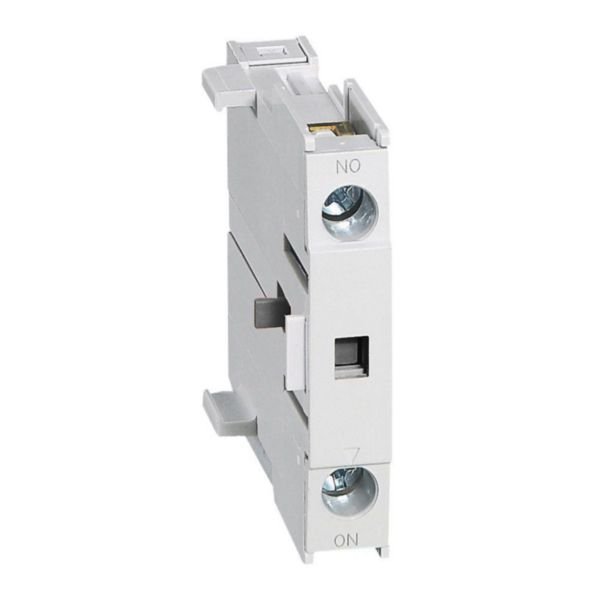

Auxiliary Contact 1NO for CTX3 Mini Relays | 10A Rated Current | Side Mount Installation | @EA of 1 | by Legrand
The Auxiliary Contact 1NO for CTX3 mini relays is designed for reliable motor control, featuring a rated current of 10A and a minimum switching voltage of 24V DC. Ideal for tertiary and industrial electrical installations, this clip-on model allows for easy side mounting on CTX3 contactors, ensuring efficient operation and protection in motor control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- 1NO Auxiliary contact unit (Ith = 10A)
- Screw terminals capacity: 2 x 1.5mm² to 2mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Model: Clip-on
- Mounting method: Front fastening, side mounting on CTX3 mini contactors
- Dimensions (H x L x W): 40mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- 1NO auxiliary contact unit with a rated current of 10A
- Screw terminals capacity: 2 x 1.5mm² to 2mm²
- Minimum switching voltage: 24V DC
- Minimum switching current: 10mA
- Installation possible on left or right side of the contactor
- Clip-on model with front fastening
- Rated operation current Ie at AC-15, 230 V: 3 A
- Screw connection type for electrical connection
Professional Installation Requirements
- Installation should be performed by a qualified electrician familiar with motor control and protection systems, following product instructions.
Applications
- Tertiary and industrial electrical installations
- Motor control and protection systems
- Use with CTX3 mini contactors and control relays
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Designed in an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Legrand Auxiliary Contact 1NO for CTX3 Mini and Control Relays is available for immediate purchase, ideal for tertiary and industrial motor control applications.
