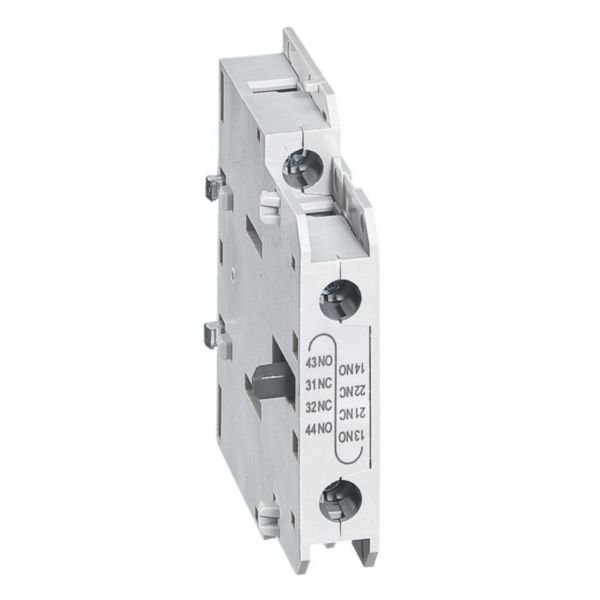

Auxiliary Contact 1NO1NC for CTX3 3P | Side Mounting | 10A Rated Thermal Current | Screw Connection | @EA of 1 | by Legrand
The Auxiliary Contact 1NO1NC for CTX3 3P is designed for reliable motor control and protection in industrial applications. Featuring a side mounting design, this clip-on model supports a rated thermal current of 10A and is equipped with screw terminals for easy installation. Ideal for CTX3 contactors ranging from 9A to 150A, it ensures compliance with IEC standards for safety and performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 1NO1NC for CTX3 3P | Side Mounting | 10A Rated Thermal Current | Screw Connection | @EA of 1 | by Legrand
Brand: Legrand
SKU: 416858
Alternatively Known As: Auxiliary contact 1NO1NC, CTX3 auxiliary contact, side mount auxiliary contact, motor contactor auxiliary switch
Technical Specifications
- Number of contacts: 1 normally open (NO) + 1 normally closed (NC)
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Mounting method: Side mounting
- Minimum switching voltage: 17V DC
- Minimum switching current: 5mA
- Screw terminals capacity: 2 x 1mm² to 2.5mm²
- Model: Clip-on
- Dimensions (H x L x W): 60mm x 70mm x 30mm
- Weight: 0.1 kg
Key Features
- 1NO + 1NC auxiliary contact unit with a rated thermal current (Ith) of 10A
- NC auxiliary contact designed as a mirror contact according to IEC 60947-4-1 standard
- Screw terminals capacity: 2 x 1mm² to 2.5mm²
- Minimum switching voltage: 17V DC
- Minimum switching current: 5mA
- Clip-on model for easy side mounting on CTX3 3P contactors
- Installation possible on either left or right side of the contactor
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Tertiary and industrial motor control and protection installations
- Side mounting on CTX3 3P contactors from 9A to 150A
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
- Complies with IEC 60947-4-1 standard
Environmental Benefits
- Designed in an environmentally conscious process complying with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies; typically 1-2 years against manufacturing defects.
Available Now
Legrand Auxiliary Contact 1NO1NC for CTX3 3P 9A to 150A side mounting is available for immediate purchase, ideal for industrial and tertiary motor control applications.
