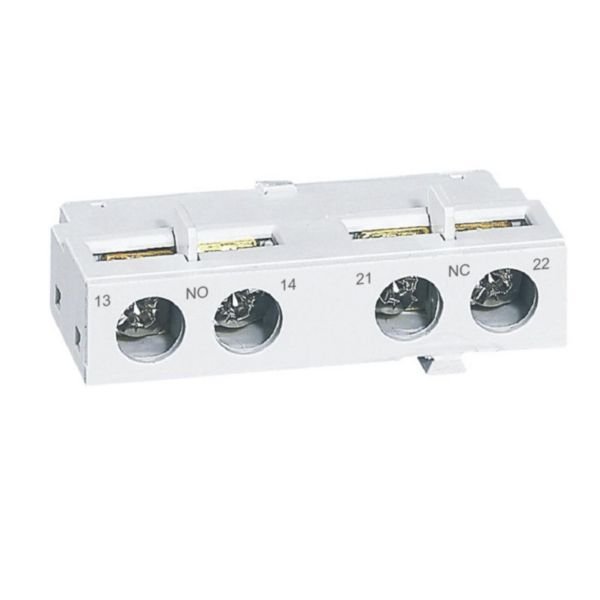

Auxiliary Contact 1NO1NC for MPX3 | Front Mounting | Clip-On Design | Screw Connection | @Each of 1 | by Legrand
The Auxiliary Contact 1NO1NC for MPX3 is designed for reliable control and signaling in industrial and tertiary electrical installations. Featuring a front mounting clip-on design and screw connection, this unit ensures easy installation and compatibility with various MPX3 models. Ideal for professional electricians, it meets AS/NZS 3000 standards and is built with environmental consciousness in mind.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 1NO1NC for MPX3 | Front Mounting | Clip-On Design | Screw Connection | @Each of 1 | by Legrand
Brand: Legrand
SKU: 417403
Alternatively Known As: Auxiliary contact 1NO 1NC, MPX3 auxiliary contact, front mount auxiliary contact, Legrand MPX3 contact
Technical Specifications
- Number of contacts as change-over contact: 0
- Number of contacts as normally open contact: 1
- Number of contacts as normally closed contact: 1
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Model: Clip-on
- Mounting method: Front fastening
- Thermal current Ith: 5A at 40°C / 3A at 60°C
- Dimensions (H x L x W): 40mm x 50mm x 20mm
- Weight: 0.1 kg
Key Features
- 1NO + 1NC auxiliary contact unit
- Rated supply current AC-15: 4A at 240V
- Rated supply current DC-13: 1A at 24V, 0.1A at 220V
- Screw terminals capacity: 2x 0.5mm² to 2.5mm²
- Compatible with MPX3 32S/H/MA, MPX3 63H, MPX3 100H
- Front mounting clip-on design
- Screw connection type
- Designed with environmental consciousness and substance restriction compliance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed in an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Auxiliary Contact 1NO1NC for MPX3 Front Mounting is available for immediate purchase, ideal for industrial and tertiary electrical control applications.
