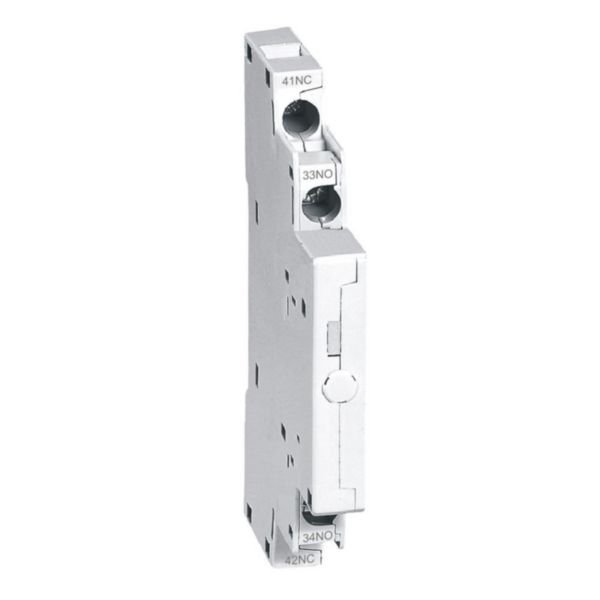

Auxiliary Contact 1NO1NC for MPX3 | Side Mounting | Clip-On Model | 6A Rated Current | @EA of 1 | by Legrand
The Auxiliary Contact 1NO1NC for MPX3 is designed for side mounting, featuring a clip-on model with 1 normally open and 1 normally closed contact. Ideal for tertiary and industrial electrical installations, it ensures reliable control and signaling in switchboards and power cabinets, with a rated supply current of 6A at 240V.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 1NO1NC for MPX3 | Side Mounting | Clip-On Model | 6A Rated Current | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417400
Alternatively Known As: Auxiliary contact 1NO 1NC, Side mount auxiliary contact, MPX3 auxiliary contact
Technical Specifications
- Number of contacts as change-over contact: 0
- Number of contacts as normally open contact: 1
- Number of contacts as normally closed contact: 1
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Model: Clip-on
- Mounting method: Side mounting
- Ith = 10A at 40°C / 6A at 60°C
- Dimensions (H x L x W): 50mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- 1NO + 1NC auxiliary contact unit
- Rated supply current AC-15: 6A at 24V, 4A at 240V
- Rated supply current DC-13: 2A at 24V, 0.25A at 220V
- Screw terminals capacity: 2x 0.5mm² to 2.5mm²
- Compatible with MPX3 32S/H/MA, MPX3 63H, MPX3 100H
- Clip-on model with side mounting
- Installation on the left side of the breaker
- Designed with environmentally conscious process and substance-restriction compliance
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with substance-restriction compliance
- Manufactured using environmentally conscious processes
Warranty Information
Standard Legrand warranty applies, typically 1 year against manufacturing defects.
Available Now
Legrand Auxiliary Contact 1NO1NC for MPX3 side mounting is available for immediate purchase, ideal for tertiary and industrial electrical control applications.
