Making Trade Life Easy!

Home/Electrical/Switchgear/Residual Current Devices/Auxiliary Contact 2 C/O | 2mA-100mA | 24VAC-250VAC | Top & Bottom Connection by Clipsal

Trade Discount 33%

Acti9, Auxiliary contact, iSD+OF, 2 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, top and bottom connection

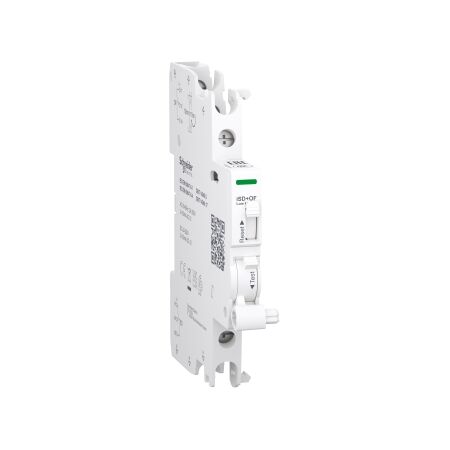

Auxiliary Contact 2 C/O | 2mA-100mA | 24VAC-250VAC | Top & Bottom Connection by Clipsal

BRAND: Clipsal

SKU: A9A26919

$102.00 List price: $153.00

+ −

30 Days Return Delivery Options

Auxiliary contact with 2 C/O configuration and 2mA to 100mA current range—ideal for small commercial and critical buildings. Built for versatile applications, with top and bottom connection for easy installation.

Description
Attachments

Product Name/Title: Acti9, Auxiliary contact, iSD+OF, 2 C/O, 2mA to 100mA, 24VAC to 250VAC, 24VDC to 220VDC, top and bottom connection

Brand: Clipsal

SKU: A9A26919

Alternatively Known As: Acti9 iSD+OF, Auxiliary Contact, Circuit Protection Device

Technical Specifications

Rated current: 2mA to 100mA
Voltage: 24VAC to 250VAC, 24VDC to 220VDC
IP Rating: IP20
Operating temperature: -25°C to 70°C
Rated insulation voltage: 500V
Rated impulse withstand voltage: 4kV
Pollution degree: 3
Tropicalisation: 2
Dimensions (H x L x W): 90mm x 73mm x 9mm
Weight: 0.04 kg

Key Features

2 C/O contacts for versatile applications.
Compatible with Acti9 range including iSW-NA, iC60, and more.
Top and bottom connection for easy installation.

Professional Installation Requirements

Professional installation is recommended for optimal performance.

Applications

Small commercial buildings
Critical buildings
Healthcare
Industry
Data centers
Infrastructures

Standards & Compliance

Complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4.

Environmental Benefits

Packaging made with recycled cardboard.

Warranty Information

Standard warranty applies.

Available Now

The Clipsal Acti9 Auxiliary Contact iSD+OF is available now for immediate purchase. Ideal for small commercial and critical building applications.

A9A26919 (A9A26919, 213 Kb) [Download]
