Auxiliary Contact 2NC | 690V Insulation | Top Mount | Compact by NHP
Auxiliary contact with 2 normally closed contacts and 690V insulation—ideal for industrial and commercial automation. Built for reliable operation, with top mounting for easy integration.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.

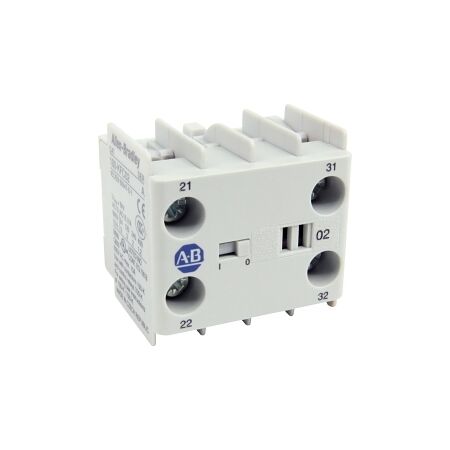

Product Name/Title: Allen-Bradley 100K Auxiliary Contact with 2NC Contact for 100K Front Mount
Brand: NHP
SKU: 100KFC02
Alternatively Known As: 100K Auxiliary Contact, Mini Auxiliary Contact, 100KFC02
Technical Specifications
- Number of Contacts: 2 NC
- Rated Insulation Voltage: 690 V
- Rated Operation Current at 40°C: 10 A
- Rated Operation Current at AC 15 24 V: 3 A
- Rated Operation Current at AC 15 120 V: 3 A
- Rated Operation Current at AC 15 240 V: 2 A
- Rated Operation Current at AC 15 400 V: 1.2 A
- Rated Operation Current at DC 13 24 V: 2.3 A
- Rated Operation Current at DC 13 110 V: 0.55 A
- Rated Operation Current at DC 13 220 V: 0.27 A
- Min Contact Rating Current: 2 mA
- Min Contact Rating Voltage: 15 V
- Mounting Method: Top mounting
- Dimensions (H x L x W): 50mm x 100mm x 50mm
- Weight: 0.5 kg
Key Features
- 2 Normally Closed (NC) contacts for reliable operation.
- Rated insulation voltage of 690 V.
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended for optimal safety.
Applications
- Industrial: Used in control circuits for machinery and equipment.
- Commercial: Suitable for various automation applications.
Standards & Compliance
- Complies with AS/NZS 60950 for safety of IT and communication equipment.
Environmental Benefits
- Designed for energy efficiency in control applications.
Warranty Information
1 year warranty against manufacturing defects.
Available Now
The Allen-Bradley 100K Auxiliary Contact with 2NC Contact is available now for immediate purchase. Ideal for industrial and commercial automation applications.
Non-Returnable & Non-Cancellable
