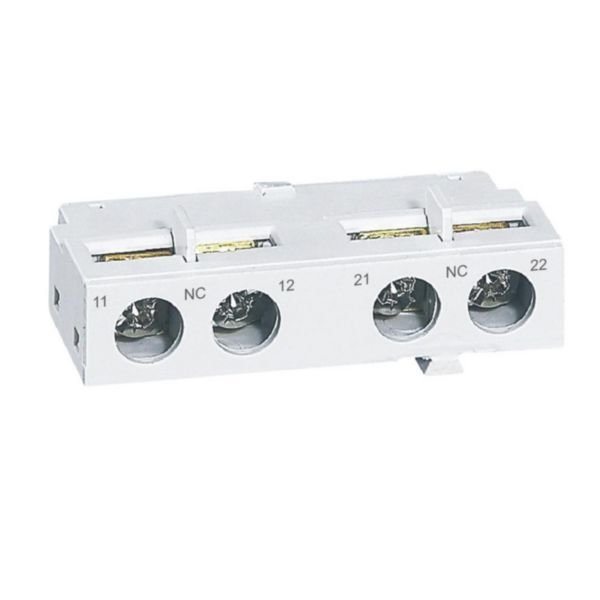

Auxiliary Contact 2NC for MPX3 | Front Mounting | Clip-On Design | 5A Rated Current | @EA of 1 | by Legrand
The Auxiliary Contact 2NC for MPX3 is designed for reliable control in tertiary and industrial electrical installations. Featuring a front mounting clip-on design and a rated current of 5A, this unit ensures optimal performance in switchboards and power cabinets. Ideal for professional electricians, it supports screw terminals for easy connections and complies with AS/NZS 3000 standards.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Auxiliary Contact 2NC for MPX3 | Front Mounting | Clip-On Design | 5A Rated Current | @EA of 1 | by Legrand
Brand: Legrand
SKU: 417405
Alternatively Known As: Auxiliary contact 2NC, Front mount auxiliary contact, MPX3 auxiliary contact, Legrand MPX3 contact
Technical Specifications
- Number of normally closed contacts: 2
- Number of normally open contacts: 0
- Number of change-over contacts: 0
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Mounting method: Front fastening
- Model: Clip-on
- Dimensions (H x L x W): 50mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- 2NC auxiliary contact unit with Ith = 5A at 40°C / 3A at 60°C
- Rated supply current AC-15: 4A / 240V
- Rated supply current DC-13: 1A / 24V, 0.1A / 220V
- Screw terminals capacity: 2x 0.5mm² to 2.5mm²
- Compatible with MPX3 32S/H/MA, MPX3 63H, MPX3 100H
- Front mounting clip-on design
- Environmentally conscious manufacturing process
Professional Installation Requirements
- Professional installation by a qualified electrician is recommended to ensure proper mounting and electrical connection.
Applications
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process
- Complies with substance-restriction requirements
Warranty Information
Standard manufacturer warranty applies. Please refer to Legrand for specific warranty details.
Available Now
Legrand Auxiliary Contact 2NC for MPX3 - Front Mounting is available for immediate purchase, ideal for tertiary and industrial electrical control applications.
