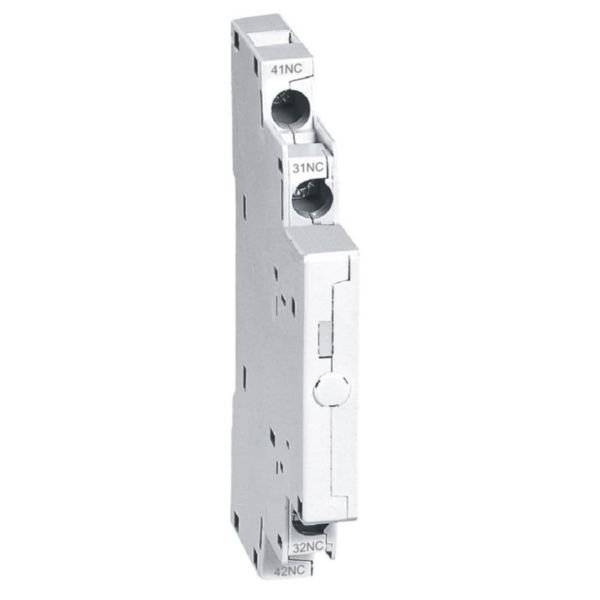

Auxiliary Contact 2NC for MPX3 | Side Mounting | 10A Rated Current | Screw Connection | @EA of 1 | by Legrand
The Auxiliary Contact 2NC for MPX3 is designed for reliable electrical control in tertiary and industrial applications. With a rated current of 10A and a side mounting feature, this clip-on unit ensures easy installation and compatibility with various MPX3 breakers. Ideal for control and signaling in switchboards, it meets AS/NZS 3000 standards for safety and compliance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Number of normally closed contacts: 2
- Number of normally open contacts: 0
- Number of change-over contacts: 0
- Rated operation current Ie at AC-15, 230 V: 3 A
- Type of electric connection: Screw connection
- Mounting method: Side mounting (left side of breaker)
- Model: Clip-on
- Dimensions (H x L x W): 50mm x 60mm x 20mm
- Weight: 0.1 kg
Key Features
- 2NC auxiliary contact unit with rated current Ith = 10A at 40°C / 6A at 60°C
- Rated supply current AC-15: 6A at 24V, 4A at 240V
- Rated supply current DC-13: 2A at 24V, 0.25A at 220V
- Screw terminals capacity from 2x 0.5mm² to 2.5mm²
- Compatible with MPX3 32S/H/MA, MPX3 63H, MPX3 100H breakers
- Clip-on model with side mounting on the left side of the breaker
- Screw connection type for electrical wiring
Professional Installation Requirements
- Installation should be performed by a qualified electrician following product instructions and safety standards.
Applications
- Tertiary and industrial electrical installations
- Control and signalling in switchboards and power cabinets
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Designed with an environmentally conscious process complying with substance-restriction requirements
Warranty Information
Standard Legrand warranty applies, typically 1-2 years against manufacturing defects.
Available Now
Legrand Auxiliary Contact 2NC for MPX3 Side Mounting is available for immediate purchase, ideal for tertiary and industrial electrical control applications.
